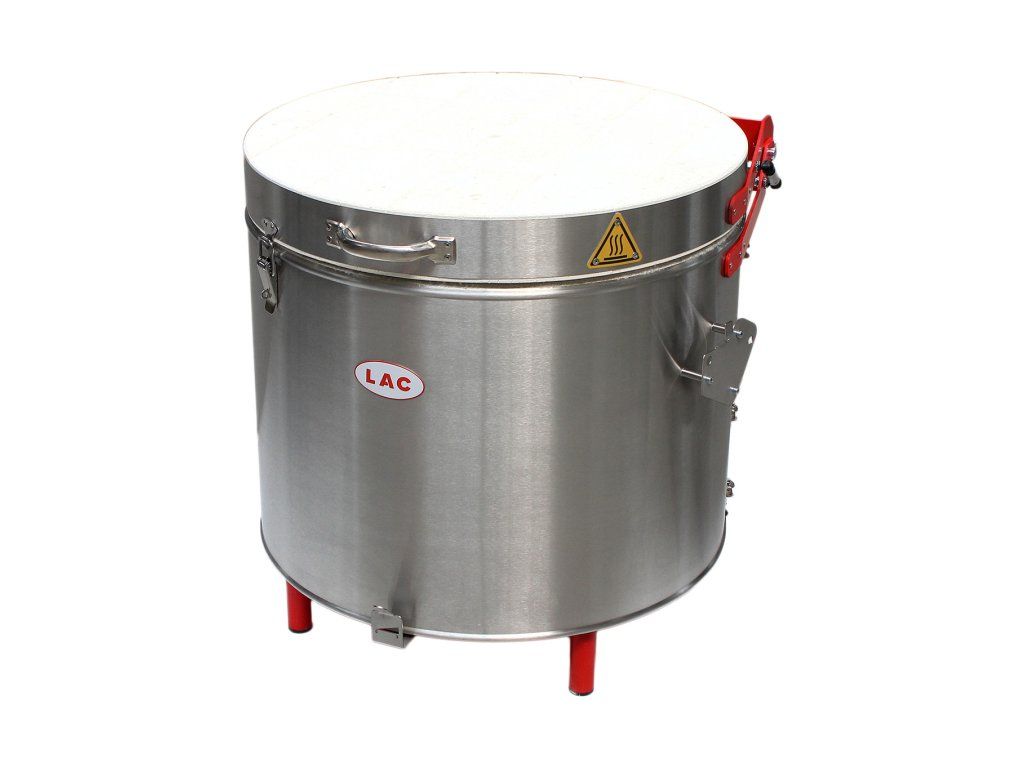

Top-Loading Ceramic Kiln M 60/13 (230 V)
Max temp: 1320 °C | Volume: 61 l | Voltage: 230 V
Top-loading ceramic kiln M 60/13 (230 V) for pottery, ceramics and glass firing
Looking for a reliable top-loading ceramic kiln with more firing capacity and 230 V power supply for hobby ceramics, pottery studios or school workshops?
The LAC M 60/13 (230 V) is a practical top-loading kiln up to 1320 °C designed for consistent firing results, efficient operation and comfortable everyday use in ceramic and glass applications.
- You need a top-loading ceramic kiln with more firing capacity
- You prefer a kiln version with 230 V power supply
- You work with pottery, ceramics, porcelain or glass
- You require repeatable firing results
- You are looking for a kiln suitable for studio, school or hobby use
- You want to choose between different programmable kiln controllers
Key features:
- Maximum temperature up to 1320 °C
- 230 V power supply for selected installation conditions

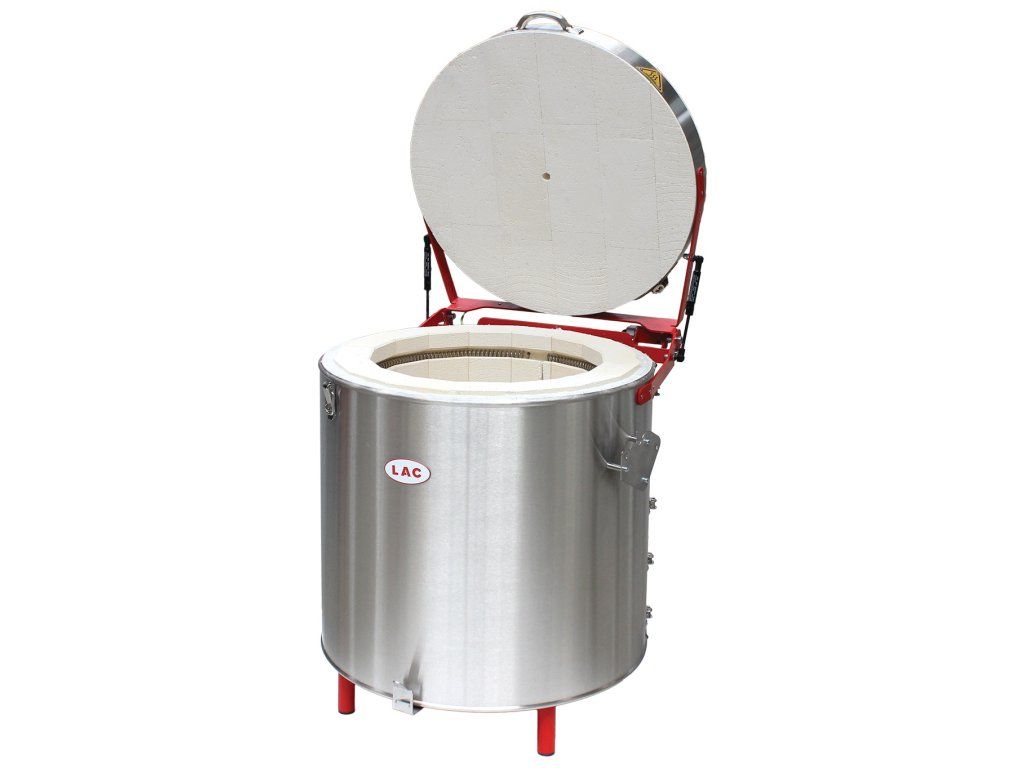

- Top-loading kiln design for comfortable loading and unloading
- Uniform temperature rise and distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney preventing condensation of vapours during firing
- Gas strut assisted lid opening for safe and comfortable operation
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell
- Selectable programmable kiln controllers
Typical applications
The M 60/13 (230 V) is designed for controlled ceramic and glass firing processes where stable thermal conditions, repeatable firing cycles and practical chamber capacity are required.
- Bisque firing
- Glaze firing
- Pottery and studio ceramics
- Porcelain firing
- Decor firing
- Glass fusing
- Educational and hobby ceramic applications
Available kiln controllers
Different programmable controllers are available depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL | Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 | Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Main benefits
- Practical kiln capacity for regular studio and workshop firing
- 230 V version for selected installation conditions
- Reliable and repeatable firing results
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
- Selectable programmable kiln controllers
- Suitable for hobby, educational and professional ceramic firing
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Contact us and we will help you choose the right kiln configuration for your application.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Variants |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 598×764×730 |
| Input in kW: | 3,5 |
| Internal dimensions (w × h × d) mm: | 412×458 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 230 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 61 |
| External dimensions (D×d×h) mm: | 598×764×730 |
| Internal dimensions (D×h) mm: | 412×458 |
| Input in kW: | 3,5 |
| Weight in kg: | 71 |
| Power socket: | Schuko |
| Protection A: | 16/1 |
| Voltage V: | 230 |
| The item has been sold out… | |
