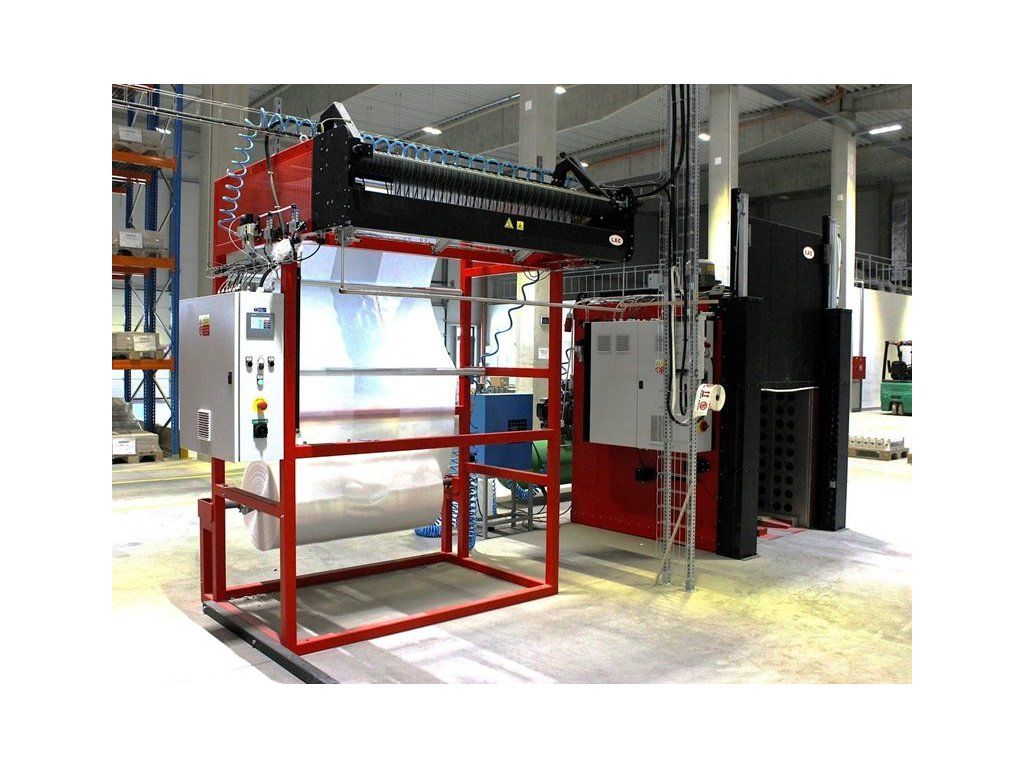

Automatic Bag Unwinder for PE Tubular Film
Accessory for SV (PE) | Automatic preparation of bags from PE tubular film
Automatic preparation of bags from PE tubular film
Need to prepare bags from PE tubular film quickly and repeatedly for pallet packaging?
The automatic bag unwinder is designed as an optional accessory for the SV (PE) heat shrink chamber. It unwinds PE tubular film from a roll, sets the required bag length, welds one side and automatically cuts the prepared bag.
- You use PE tubular film supplied on rolls
- You need to prepare bags of different lengths
- You want to reduce manual preparation of bags
- You need repeatable welding and cutting
- You want to complement the SV (PE) heat shrink chamber
PE tubular film is unwound from the roll to the programmed length. The machine then welds one side of the film and cuts it automatically, creating a bag ready to be placed over the palletized goods before heat shrinking.
Key features and benefits:
- Automatic unwinding of PE tubular film
- Programmable bag length
- Two-row weld across the full width of the PE tubular film
- Automatic cutting using a pneumatically controlled cutter
- Touch control using Siemens SIMATIC HMI
- Compatible with different widths of PE tubular film
- Production capacity of up to 1 bag every 12 seconds
The automatic bag unwinder is designed to complement the SV (PE) heat shrink chamber. It prepares the bag from PE tubular film before the film is placed over the palletized goods and heat-shrunk in the chamber.
Technical parameters
- External dimensions (w × h × d): 2100 × 2850 × 1950 mm
- Weight: 460 kg
- Production capacity: up to 1 bag every 12 seconds
- Voltage: 3/PEN 400/230 V AC, 50 Hz
- Bag cutter: pneumatic
- Control system: Siemens PLC
Contact us and our specialists will help you select the right solution for use with the SV (PE) heat shrink chamber.
