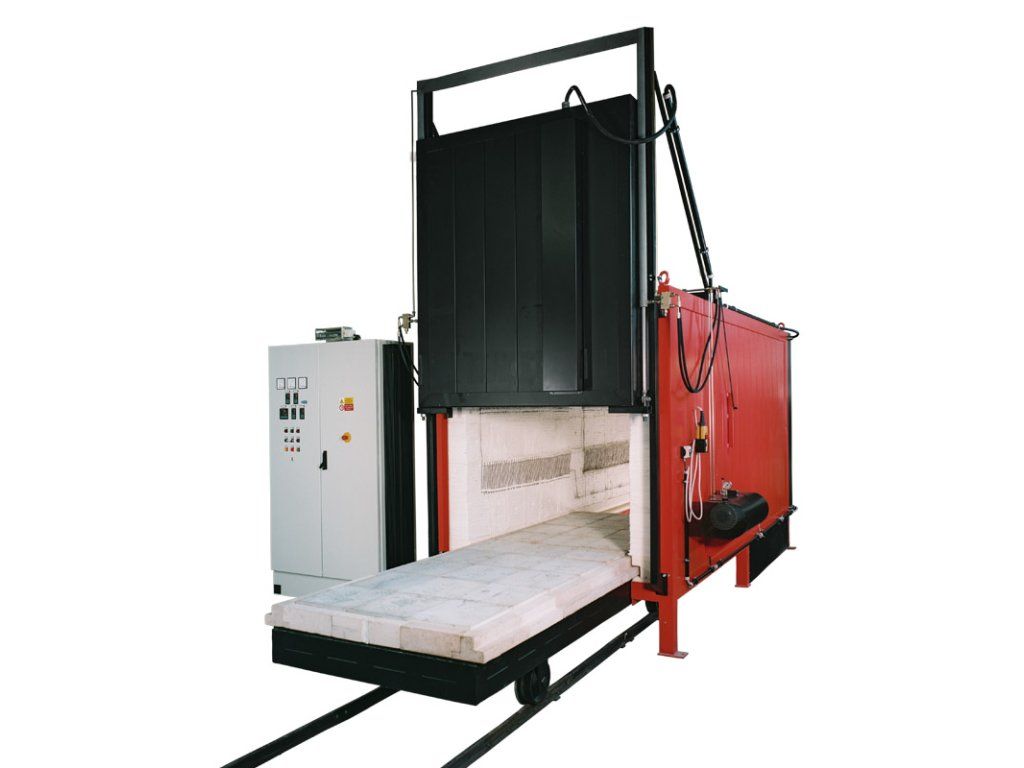

Bogie Hearth Furnace VKT up to 900 °C
Max temp: 900 °C | Volume: 800–6700 l | Voltage: 400 V
Industrial bogie-hearth furnace for large and heavy charges up to 900 °C
Need to heat treat large, heavy or bulky charges without difficult loading into a standard chamber furnace?
The VKT bogie-hearth furnace up to 900 °C is designed for industrial heat treatment processes where easy loading, high bogie load capacity, robust construction and even temperature distribution are essential.
- You need heat treatment up to 900 °C
- You process large, heavy or bulky charges
- You need easier loading using a furnace bogie trolley
- You require heating from five sides
- You need high load capacity up to approx. 8000 kg
- You work with preheating, annealing, ageing or stress relieving
Key features:
- Maximum temperature 900 °C
- Recommended operating range 700–900 °C
- Bogie-hearth loading system
- Heating from five sides — four furnace walls and the bogie hearth
- Robust steel structure for heavy-duty operation
- Manual bogie drive as standard
- Chamber volumes from approx. 800 to 6700 l
- Maximum bogie load capacity from approx. 2000 to 8000 kg
Why choose a bogie-hearth furnace?
A bogie-hearth furnace is ideal when the charge is difficult to handle manually or with standard loading equipment. The charge can be prepared outside the furnace and moved into the chamber on the bogie trolley.
- Easier loading of large and heavy parts
- Better access to the charge before and after heat treatment
- High load capacity for industrial production
- Suitable for bulky parts, moulds, castings and welded structures
Heating from five sides
The VKT furnace is heated from the side walls, rear wall, door and the furnace bogie. This supports more even heat distribution around the charge and helps achieve stable process results.
- Resistance heating on furnace walls
- Heating spirals in the bogie hearth
- Covered heating spirals for better protection
- Temperature field optimisation available according to DIN 17052-1
Typical applications
- Preheating shell moulds
- Preheating prior to forging
- Preheating moulds
- Preheating castings
- Preheating before hardening
- Homogenisation annealing
- Normalisation annealing
- Soft annealing
- Annealing for stress relieving
- Recrystallisation annealing
- Artificial ageing
Main benefits
- Easy charge loading
- Robust steel structure
- Long service life
- Even temperature distribution
- Precise PID control
- High bogie load capacity
- Custom adjustments
- 24-month warranty
Optional features
- Ht200 controller with USB interface
- Automatic ventilation flap
- Temperature field optimisation according to DIN 17052-1 ΔT 20 °C
- Measuring loop calibration
- Grommet for TUS test measuring thermocouple
- EIA-485 or LAN interface
- HtMonit set including software and interface
- Three-channel digital temperature recorder
- Ammeters for checking the state of heating elements
- Electro-hydraulic upward door opening
- Electric bogie drive
- Rails embedded in the floor
- Metal sheets on the bogie working surface up to 1000 °C
Technical parameters
The table below shows the standard technical parameters for the VKT bogie-hearth furnace up to 900 °C.
| Parameter | VKT 800/09 | VKT 1000/09 | VKT 1500/09 | VKT 2000/09 | VKT 3000/09 | VKT 5000/09 | VKT 7000/09 |
|---|---|---|---|---|---|---|---|
| Maximum temperature (°C) | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Recommended operating range (°C) | 700–900 | 700–900 | 700–900 | 700–900 | 700–900 | 700–900 | 700–900 |
| Volume (l) | 800 | 1000 | 1500 | 2000 | 3000 | 5000 | 6700 |
| Internal dimensions (w × h × d, mm) | 900×600×1500 | 900×600×2000 | 1000×600×2500 | 1000×800×2500 | 1000×1000×3000 | 1200×1400×3000 | 1200×1400×4000 |
| External dimensions (w × h × d, mm) | 2350×2650×2500 | 2350×2650×3050 | 2450×2500×3500 | 2250×3100×3600 | 2650×3250×4000 | 2700×4500×4050 | 2700×4500×5050 |
| Input (kW) | 32 | 40 | 60 | 80 | 110 | 130 | 150 |
| Weight (kg) | 2100 | 2300 | 2550 | 2800 | 3500 | 4200 | 4900 |
| Voltage (V) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Protection (A) | 63/3 | 80/3 | 100/3 | 160/3 | 200/3 | 250/3 | 250/3 |
| Max. bogie load (kg) | 2000 | 2000 | 3500 | 3500 | 4500 | 5000 | 8000 |
Contact us and our specialists will help you select the right chamber size, bogie load capacity, rail solution and optional equipment.
View the complete product page for detailed information about construction, accessories, applications and technical specifications.
Additional parameters
| Category: | Industrial furnaces |
|---|---|
| Warranty: | 2 years |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
| Manufacturing company : | LAC, s.r.o. |
|---|---|
| Address : | Topolová 933 667 01 Židlochovice Czech Republic |
| E-mail : | sales@lac.cz |
