Bogie Hearth Oven SVK up to 250 °C
Max temp: 250 °C | Volume: 1020–30000 l | Voltage: 400 V
Bogie Hearth Oven SVK up to 250 °C
Volume: 1500 l
Upon request
| 310843
€34 220
€41 406
incl. VAT
Volume: 2000 l
Upon request
| 310844
€38 380
€46 440
incl. VAT
Volume: 1020 l
Upon request
| 310842
€31 100
€37 631
incl. VAT
Volume: 3600 l
Upon request
| 310845
€46 700
€56 507
incl. VAT
Volume: 4330 l
Upon request
| 310846
€51 900
€62 799
incl. VAT
Volume: 7200 l
Upon request
| 310847
€59 180
€71 608
incl. VAT

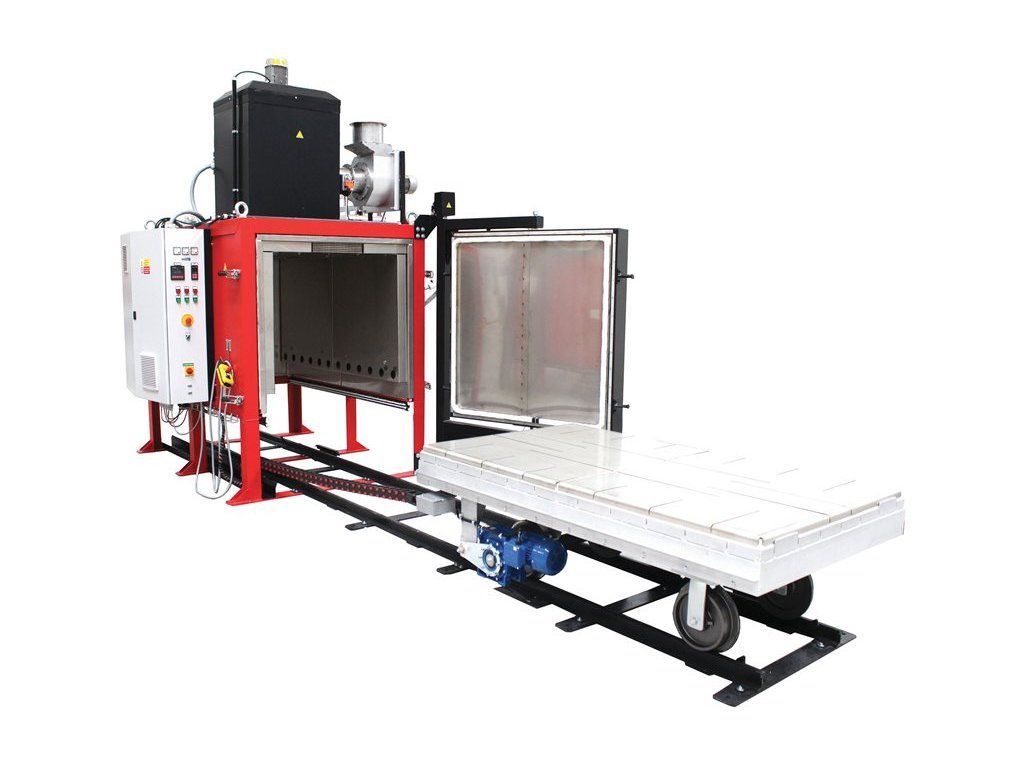

Bogie hearth oven for bulky and heavy charges up to 250 °C
Need to dry, preheat, cure or temper large and heavy charges without difficult manual handling?
The SVK bogie hearth oven up to 250 °C is designed for industrial processes where you need easy loading, forced air circulation and even temperature distribution.
When is this oven the right choice?
- You process bulky, heavy or large-volume charges
- You need an oven up to 250 °C
- You want convenient loading using a bogie trolley
- You require forced air circulation
- You work with drying, curing, tempering, preheating, vulcanisation or artificial ageing
- You need an oven designed for repeated industrial operation
The SVK bogie hearth oven is suitable when the charge is too large, bulky or heavy for a standard chamber oven. The bogie trolley allows the charge to be loaded outside the chamber and then moved into the oven. This makes loading easier and more practical, especially in production environments where parts are handled by crane, forklift or other equipment.
Key features:
- Maximum temperature 250 °C
- Recommended operating range 100–250 °C
- Bogie hearth loading system
- Forced air circulation
- Stainless steel internal chamber protection
- Manual bogie trolley as standard
- Rails supplied as part of delivery
- Door opening to the side in C-type suspension
Typical applications
The SVK bogie hearth oven is suitable for low-temperature industrial processes where large or heavy charges need to be dried, preheated, cured or tempered with forced air circulation.
- Drying moulds and cores
- Drying
- Granulate drying
- Curing
- Tempering
- Vulcanisation
- Preheating
- Preheating castings
- Preheating moulds
- Preheating prior to forging
- Artificial ageing
- Firing
- Burning-in of electrical components
Typical industries
- Foundries and casting operations
- Automotive industry
- Electrical industry
- Rubber processing
- Plastics processing
- Mechanical engineering
- Industrial production with large or heavy components
Main benefits
- Easy loading of bulky and heavy charges
- Even temperature distribution thanks to forced air circulation
- Suitable for crane and forklift handling
- Durable chamber protection against mechanical and chemical stress
- Suitable for repeated industrial operation
Suitable for customers who need a bogie hearth oven for large, bulky or heavy charges and low-temperature processes up to 250 °C.
If your process requires temperatures up to 450 °C, consider the SVK 450 °C bogie hearth oven.
If your process requires temperatures up to 450 °C, consider the SVK 450 °C bogie hearth oven.
Optional accessories available at additional cost
- Ht200 controller (30 programmes with 15 steps each, USB interface)
- Automatic ventilation flap for cooling the furnace’s operational space
- Automatic suction flap for cooling the furnace’s operational space
- Exhaust fan for cooling and drawing off flue gases
- Controlled underpressure forced cooling
- Non-controlled underpressure forced cooling
- Graphic temperature recorder
- EIA-485 or LAN interfaces
- HtMonit set EV (including software + interface)
- Measuring loop calibration
- Installation of facility (to ensure that this facility is brought into operation properly, we recommend installation by an LAC specialist)
- Optimisation of the temperature field for DIN 17052-01-ΔT 10 °C in the internal usable space in an empty furnace at Tmax (for sizes up to SVK 4500 inclusive)
- Rails embedded in the floor
- Relative humidity measurement
- METREX gas analyser
- Second door
- Gas heating
- Second furnace bogie, manual or electric drive
- Bogie carriage electric drive
- Door opening towards the top (electro-hydraulically)
- Controlled or non-controlled forced overpressure cooling
- Temperature distribution demand for furnaces in the SVK 7200 size and in larger sizes
Note: When combining accessories available at additional cost, consult with our technical office.
Technical parameters
The table below shows the standard technical parameters for the SVK bogie-hearth oven up to 250 °C.
← Scroll horizontally to view all parameters →
| Parameter | SVK 1000/25 | SVK 1500/25 | SVK 2000/25 | SVK 3600/25 | SVK 4500/25 | SVK 7200/25 | SVK 15000/25 | SVK 20000/25 | SVK 30000/25 |
|---|---|---|---|---|---|---|---|---|---|
| Maximum temperature (°C) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Recommended operating range (°C) | 100–250 | 100–250 | 100–250 | 100–250 | 100–250 | 100–250 | 100–250 | 100–250 | 100–250 |
| Volume (l) | 1020 | 1500 | 2000 | 3600 | 4330 | 7200 | 15200 | 20000 | 30000 |
| Internal dimensions (w × h × d, mm) | 900×900×1260 | 1000×1000×1500 | 1000×1000×2000 | 1200×1200×2500 | 1200×1200×3000 | 1500×1600×3000 | 2000×1900×4000 | 2000×2000×5000 | 2500×2000×6000 |
| External dimensions (w × h × d, mm) | 1600×2400×1650 | 1800×2500×1900 | 1800×2500×2400 | 2100×2900×2900 | 2100×2900×3400 | 2400×3600×3400 | 3500×4400×4650 | 3500×4500×5700 | 4000×4500×6700 |
| Input (kW) | 27 | 45 | 54 | 63 | 72 | 84 | 120 | 168 | 204 |
| Circulation fan (kW) | 1 × 1.5 | 1 × 1.5 | 1 × 1.5 | 1 × 1.5 | 1 × 1.5 | 1 × 1.5 | 2 × 5.5 | 2 × 5.5 | 3 × 5.5 |
| Exhaust fan (kW) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Circulation (m³/h) | 1000 | 2000 | 2000 | 3000 | 3000 | 5000 | 6000 | 8000 | 10000 |
| Weight (kg) | 1200 | 1400 | 1500 | 1800 | 1900 | 1900 | 6500 | 7500 | 9000 |
| Voltage (V) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Protection (A) | 63/3 | 100/3 | 125/3 | 160/3 | 160/3 | 160/3 | 400/3 | 400/3 | 630/3 |
Not sure which SVK model is suitable for your process?
Contact us and our specialists will help you select the right chamber size, airflow performance, heating capacity and optional equipment for your application.
Contact us and our specialists will help you select the right chamber size, airflow performance, heating capacity and optional equipment for your application.
FOR RELIABLE HEAT TREATMENT AND INDUSTRIAL PROCESSES
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
Typical applications: material testing • heat treatment • ceramics processing • glass • laboratory and industrial production
