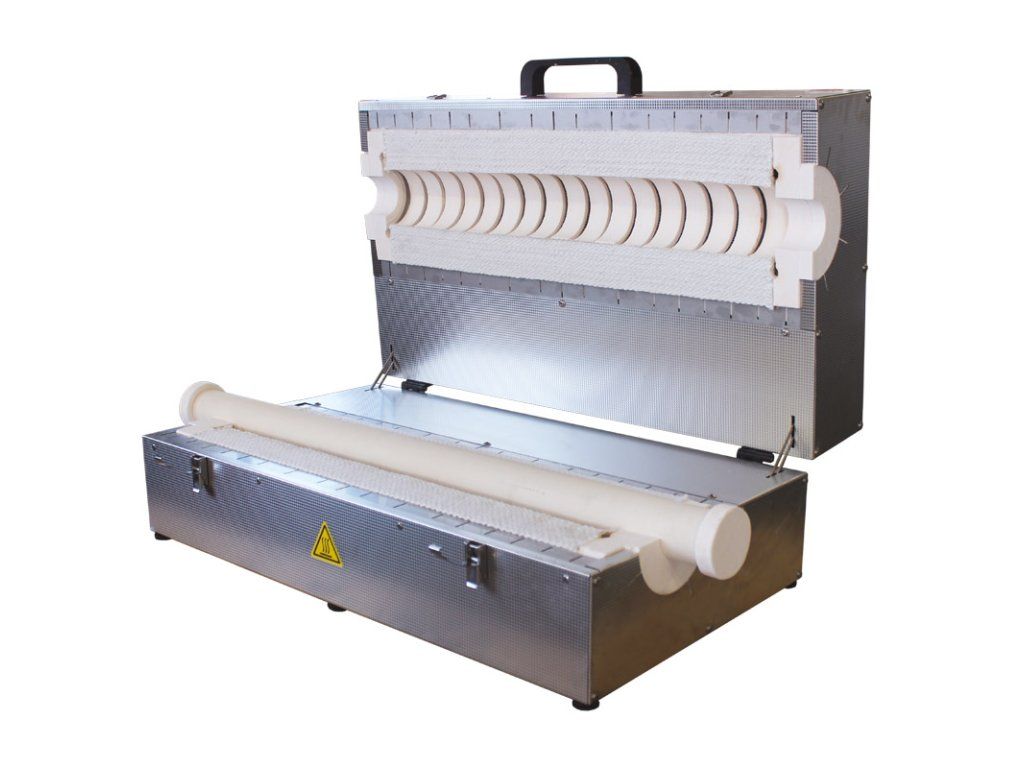

Compact Tube Furnace LT 100/750/13 up to 1300 °C
Max temp: 1300°C | Tube diameter: 100 mm | Voltage: 400 V
Laboratory tube horizontal furnace for special laboratory and research works
Looking for a furnace for testing and heat treatment of larger sample volumes under stable conditions in a ceramic tube?
The LT 100/750/13 model is a laboratory tube horizontal furnace for controlled thermal processes up to 1300 °C.
- You work with larger sample volumes
- You require stable temperature conditions in a ceramic tube
- You perform special laboratory or research works
- You need a furnace suitable for protective atmosphere operation
Key features:
- Maximum temperature 1300 °C
- Tube bore 100 mm
- Heating zone length 750 mm
- Tube length 1220 mm
- Ceramic tube
- Contactless semiconductor relay for noiseless operation
Typical applications
This laboratory tube furnace is suitable for testing and heat treatment of larger sample volumes. It is especially suitable for processes requiring stable temperature conditions in a ceramic tube and for selected applications in a protective atmosphere.
- Special laboratory and research works
- Testing of larger samples
- Heat treatment of larger sample volumes
- Material testing
- Protective atmosphere processes
- Processes with movement of the charge during heat treatment
Tube size and heated length
- LT 50/300/13 (product detail) – 50 mm tube bore with 300 mm heated length
- LT 50/500/13 (product detail) – 50 mm tube bore with 500 mm heated length
- LT 50/750/13 (product detail) – 50 mm tube bore with 750 mm heated length
- LT 75/500/13 (product detail) or LT 75/750/13 (product detail) – 75 mm tube bore for medium sample volumes
- LT 100/500/13 (product detail) – 100 mm tube bore with 500 mm heated length
- LT 100/750/13 – 100 mm tube bore with 750 mm heated length (this model)
Ideal choice if
- You need a tube furnace up to 1300 °C
- You perform research and testing of larger sample volumes
- You require stable conditions inside a ceramic tube
- You need the possibility of protective atmosphere operation
Main benefits
- Stable temperature conditions in the ceramic tube
- Suitable for larger sample volumes
- Protective atmosphere possibility
- Noiseless operation
- Bench-top design
For standard chamber heat treatment, consider the L series or a more economical LE series.
Optional features
- Special stand for vertical furnace position
- Accessories for protective atmosphere operation
- Alternative controller options
Contact us or use our sample testing services.
For technical specifications, construction and design, please refer to the product page.
| Category: | Laboratory furnaces |
|---|---|
| Warranty: | 3 years |
| Weight: | 60 kg |
| Tmax °C: | 1300 |
| Recommended operating temperature range in °C: | 600 - 1250 |
| Internal Ø of tube in mm: | 100 |
| External dimensions (w × h × d) mm: | 1125×310×543 |
| Length of heating zone in mm: | 750 |
| Length of tube in mm: | 1220 |
| Input in kW: | 11,5 |
| Weight in kg: | 95 |
| Voltage V: | 400 |
You need a compact tube furnace for precise laboratory testing, research and controlled atmosphere processes up to 1300 °C.
The LT series uses a ceramic working tube to create stable temperature conditions and support heat treatment of small samples with minimal temperature fluctuations. By sealing the tube, the furnace can operate in a controlled or protective atmosphere, making it suitable for advanced laboratory experiments and material research.
Explore LT models designed for controlled atmosphere processes ↓
