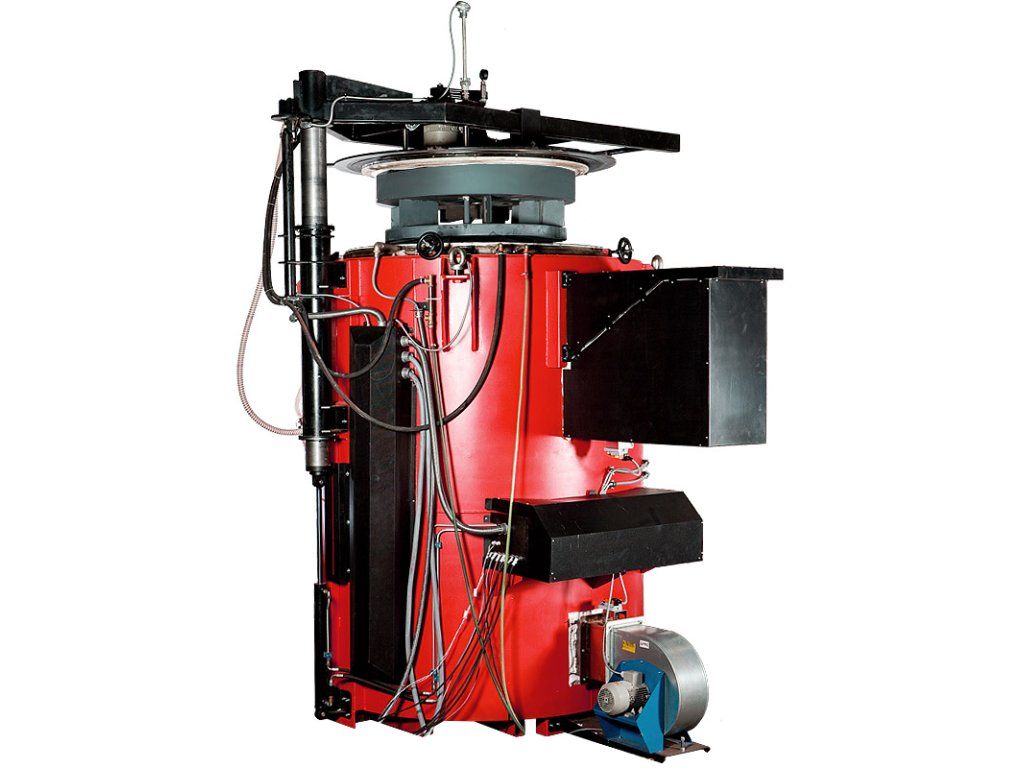

Hot Wall Retort Pit Furnace SRC up to 950 °C
Max temp: 950 °C | Volume: 500–1700 l | Voltage: 400 V
Hot Wall Retort Pit Furnace SRC up to 950 °C
Volume: 1000 l
Upon request
| 610837
€114 900
€139 029
incl. VAT
Volume: 1700 l
Upon request
| 610838
€134 900
€163 229
incl. VAT
Volume: 800 l
Upon request
| 610836
€104 900
€126 929
incl. VAT
Volume: 500 l
Upon request
| 610835
€94 900
€114 829
incl. VAT
Hot wall retort pit furnace for protective atmosphere heat treatment up to 950 °C
Need to heat treat large or heavy parts in a defined protective atmosphere with low gas consumption?
The SRC hot wall retort pit furnace up to 950 °C is designed for industrial processes where crane loading, protective atmosphere, low gas consumption and atmosphere circulation are required.
When is this furnace the right choice?
- You process large or heavy charges
- You load the charge by crane
- You need heat treatment in a protective atmosphere
- You work with argon, nitrogen, forming gas or similar process gases
- You need low protective gas consumption
- You require atmosphere circulation for better heat transfer
The SRC furnace combines a top-loading pit furnace design with a gastight retort and forced circulation of the protective atmosphere. The charge is suspended inside the retort and loaded from above, typically by crane. This makes the furnace suitable for bulky or heavy parts that cannot be handled comfortably in a standard chamber furnace.
Key features:
- Maximum temperature 950 °C
- Recommended operating range 600–900 °C
- Gastight retort for protective atmosphere processing
- Atmosphere circulation by fan installed in the lid
- Low protective gas consumption
- Electro-hydraulically lifted lid
- Automatic intake of protective atmosphere for one gas type without vacuum pump
- Standard pressure-vacuum gauge for checking overpressure and underpressure in the retort
- Available chamber volumes from approx. 500 to 1700 L
Typical applications
The SRC furnace is suitable for heat treatment processes where large or heavy charges require a defined protective atmosphere and controlled thermal processing.
- Normalisation annealing
- Soft annealing
- Annealing for stress relieving
- Recrystallisation annealing
- Artificial ageing
- High-temperature tempering
- Tempering
- Curing
- Nitriding
- Carbonitriding
- Sintering powdered metals
- Soldering
Typical industries
- Heat treatment shops
- Tool manufacturing
- Metal processing
- Mechanical engineering
- Automotive suppliers
- Research and development
- Industrial production with crane handling
Available models in this series
- SRC 500/95 – chamber volume approx. 500 L
- SRC 800/95 – chamber volume approx. 800 L
- SRC 1000/95 – chamber volume approx. 1000 L
- SRC 1700/95 – chamber volume approx. 1700 L
Main benefits
- Protective atmosphere heat treatment for large charges
- Low protective gas consumption
- Convenient top loading by crane
- Better heat transfer thanks to atmosphere circulation
- Defined operating environment inside the retort
Suitable for customers who need a hot wall retort pit furnace for large or heavy crane-loaded charges in a defined protective atmosphere up to 950 °C.
Important loading note:
The charge must not be placed directly on the retort bottom. The retort contains an internal collar intended for suspending the charge or charge fixture. When selecting the usable height, the height of the suspension fixture must also be considered.
The charge must not be placed directly on the retort bottom. The retort contains an internal collar intended for suspending the charge or charge fixture. When selecting the usable height, the height of the suspension fixture must also be considered.
Optional accessories available at additional cost
- Ht200 controller (30 programmes with 25 steps each, USB interface)
- Replacement retort made of refractory stainless steel
- Vacuum pump with attachment
- EIA-485 or LAN interface
- HtMonit EV set (contains software + interface)
- Charge thermocouple and Ht40 display
- Optimisation of the temperature field to meet the DIN 17052-1 ΔT 15 °C standard in the internal usable space (in an empty furnace at Tmax)
- Measuring loop calibration
- Automatic intake of protective atmosphere for one type of gas (with vacuum pump)
- Graphic temperature recorder
- Controlled forced overpressure cooling
- Uncontrolled forced overpressure cooling
- Retort made from Inconel
- The system monitors optimal pressure in the retort (2–4 mbar)
- Other gas management per customer specification (multiple gases, multiple flows, etc.)
- Individual dimensions to match customer requirements
- Loading frame for retort
Technical parameters
The table below shows the standard technical parameters for the SRC chamber furnace with air recirculation up to 950 °C.
← Scroll horizontally to view all parameters →
| Parameter | SRC 500/95 | SRC 800/95 | SRC 1000/95 | SRC 1700/95 |
|---|---|---|---|---|
| Maximum temperature (°C) | 950 | 950 | 950 | 950 |
| Recommended operating range (°C) | 300–900 | 300–900 | 300–900 | 300–900 |
| Volume (l) | 500 | 800 | 1000 | 1700 |
| Internal dimensions (w × h, mm) | 800×1000 | 1000×1000 | 1000×1300 | 1200×1500 |
| External dimensions (w × h × d, mm) | 2100×2900×2300 | 2350×2900×2300 | 2350×3150×2600 | 2500×3500×2800 |
| Input (kW) | 50 | 70 | 90 | 120 |
| Weight (kg) | 2500 | 3200 | 3600 | 5000 |
| Protection (A) | 100/3 | 125/3 | 160/3 | 200/3 |
| Voltage (V) | 400 | 400 | 400 | 400 |
| Max. load capacity of bottom (kg) | 350 | 450 | 600 | 1000 |
Not sure which SRC chamber furnace is suitable for your process?
Contact us and our specialists will help you select the right chamber size, load capacity, air recirculation configuration and optional equipment for your heat treatment application.
Contact us and our specialists will help you select the right chamber size, load capacity, air recirculation configuration and optional equipment for your heat treatment application.
Additional parameters
| Category: | Industrial furnaces |
|---|---|
| Warranty: | 2 years |
