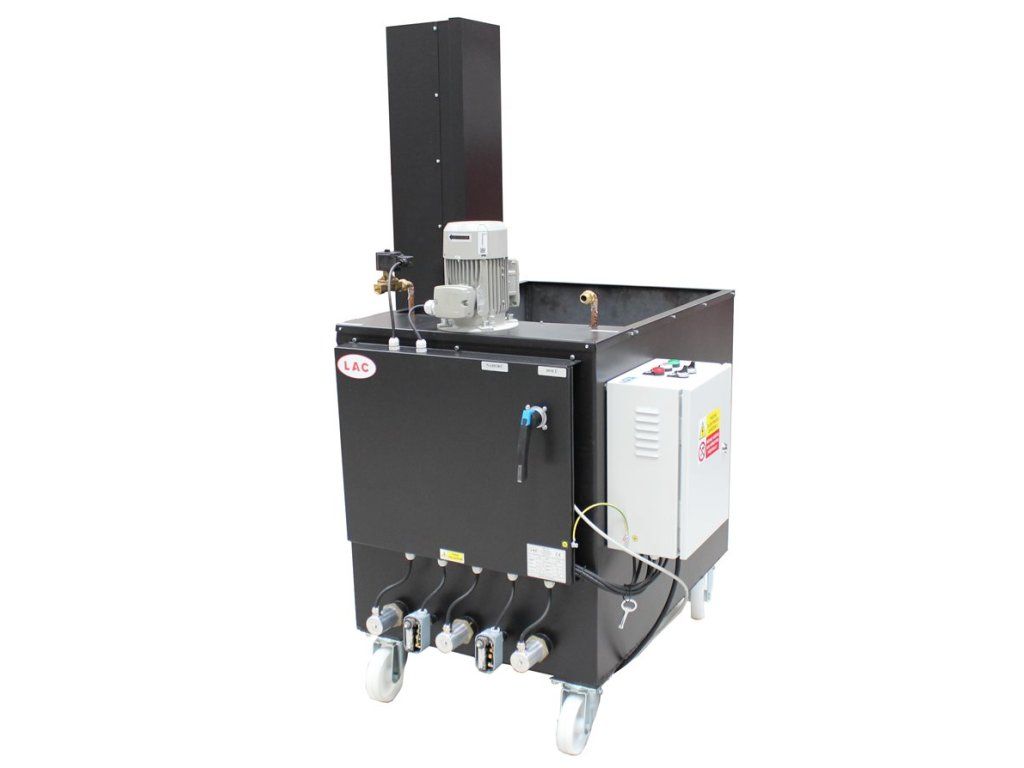

Quench Tank KK up to 300 L
Filling volume: 300 l | Max. grate load: 30 kg | Voltage: 400 V
Quench tank for fast cooling in water, polymer or oil up to 300 L
Need to cool metal parts quickly after heat treatment and make the hardening process easier to handle?
The KK quench tank is designed for fast quenching after heat treatment. It is suitable for cooling in water, polymer or oil and helps remove heat from the charge intensively and evenly.
- You quench parts in water, polymer or oil
- You need circulation of the hardening medium
- You want easier manipulation of the charge using a basket or grate
- You need a robust tank for regular industrial use
Key features:
- For quenching in water, polymer or oil
- Filling volume approx. 300 L
- Medium circulation for intensive heat removal
- Pneumatically controlled grate motion
- Stainless steel version for water and polymer
- Optional heating of hardening medium up to 80 °C
- Optional cooling of hardening medium
- Basket or grate system
- Sturdy construction
Typical applications
The KK quench tank is suitable for fast cooling after heat treatment, where the cooling rate influences hardness, structure and the final properties of the material.
- Quenching in water
- Quenching in polymer
- Quenching in oil
- Cooling of metal parts after heat treatment
Typical industries
- Heat treatment shops
- Tool manufacturing
- Metalworking
- Industrial production with hardening processes
Main benefits
- Fast cooling after heat treatment
- Better heat removal thanks to medium circulation
- Easier manipulation of the charge
- More controlled quenching process
- Robust design for industrial operation
- Simple operation
For larger quenching volumes or integrated heat treatment systems, consider the KLO oil quench tank according to the required quenching medium and process capacity.
Optional features
- Heating of hardening medium, 3 kW, maximum bath temperature 80 °C
- Cooling of hardening medium
- Custom additional components
- Increase to heating output
Technical parameters
The table below shows the standard technical parameters for the KK cooling container series.
| Parameter | KK 250 (oil) | KK 250 (water) |
|---|---|---|
| Volume of filling (l) | 300 | 300 |
| External dimensions (w × h × d, mm) | 1150×1830×1150 | 1150×1830×1150 |
| Grate dimensions (w × d, mm) | 600×700 | 600×700 |
| Weight* (kg) | 300 | 300 |
| Input (kW) | 3 | 3 |
| Voltage (V) | 400 | 400 |
| Max. grate load (kg) | 30 | 30 |
Contact us and our specialists will help you select the appropriate cooling medium, container configuration and load capacity for your heat treatment application.
Additional parameters
| Category: | Industrial furnaces |
|---|---|
| Warranty: | 2 years |
