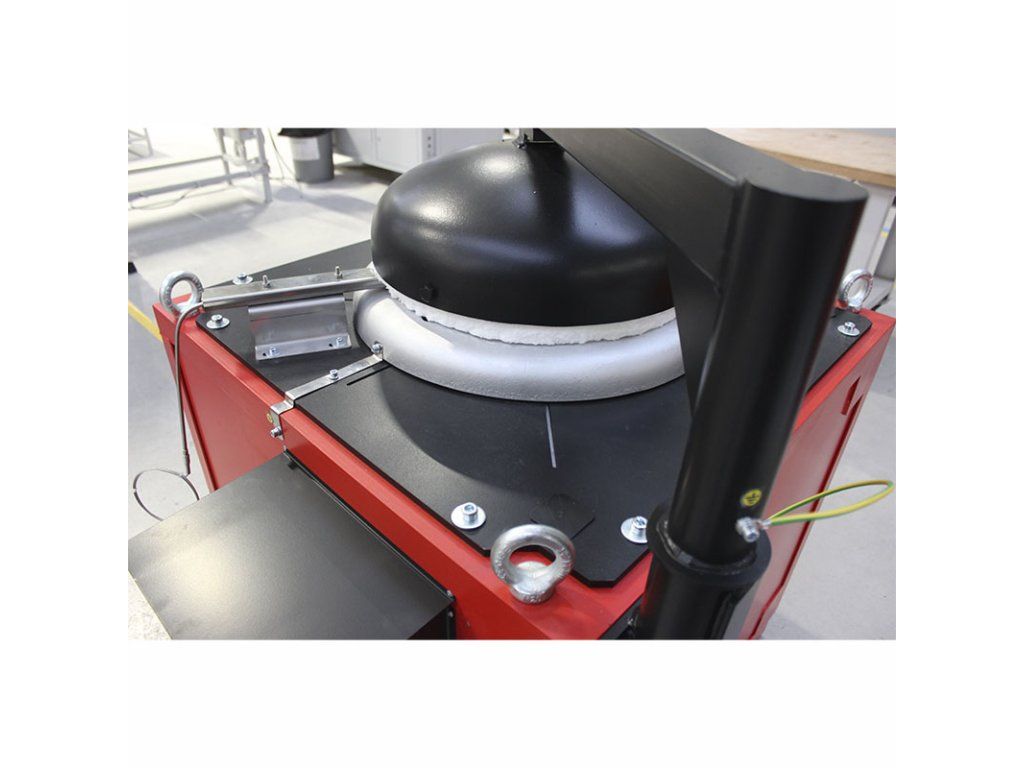

Salt Bath Furnace KSL up to 1100 °C
Max temp: 1100 °C | Volume: 20–400 l | Voltage: 400 V
Salt bath furnace for fast heating of steel parts up to 1100 °C
Need to heat steel parts quickly before hardening while reducing scaling, oxidation and surface damage?
The KSL salt bath furnace up to 1100 °C is designed for fast and uniform heating of steel parts before hardening. It is suitable for processes where direct heat transfer, simple operation and surface protection during heating are required.
- You need fast heating of steel parts before hardening
- You want to reduce scaling during heating
- You need a salt bath furnace up to 1100 °C
- You require uniform heat transfer to the workpiece
- You process tool steels or parts requiring hardening
- You need a furnace for heating or hardening in a salt bath
Key features:
- Maximum temperature 1100 °C
- Recommended operating range 500–1000 °C
- Salt bath heating for direct heat transfer
- Suitable for hardening and cementing processes
- Available bath volumes from approx. 20 to 400 L
- Manual lid
- Residual current protector
- Wall switchboard
Typical applications
- Hardening
- Cementing
- Salt bath heat treatment
- Heating of steel parts before hardening
- Tempering of tool steels with protective atmosphere
Typical industries
- Heat treatment shops
- Tool manufacturing
- Metalworking
- Mechanical engineering
- Maintenance and repair operations
Main benefits
- Fast heating of steel parts before hardening
- Reduced scaling compared with open-air heating
- Uniform heat transfer in the salt bath
- Suitable for hardening and cementing processes
- Simple operation
Optional accessories available at additional cost
- Crucible
- Charge thermocouple with protective steel tube (with option to connect to a regulation system or an independent display unit of the customer)*
- Measuring loop calibration
- Connection of the furnace with the switchboard, within a metal hose with a protective metal sheath
- Recommended consumable parts – spare parts for insulation and lid attachment
- Exhaustion collar
Technical parameters
The table below shows the standard technical parameters for the KSL salt bath furnace series up to 1100 °C.
| Parameter | KSL 20/11 | KSL 40/11 | KSL 80/11 | KSL 360/11 |
|---|---|---|---|---|
| Maximum temperature (°C) | 1100 | 1100 | 1100 | 1100 |
| Recommended operating temperature range (°C) | 500–1000 | 500–1000 | 500–1000 | 500–1000 |
| Volume (l) | 20 | 38 | 90 | 400 |
| External dimensions (w × h × d, mm) | 950×790×950 | 1100×1135×1100 | 1400×1300×1300 | 1600×1900×1600 |
| Input (kW) | 21 | 35 | 53 | 102 |
| Weight (kg) | 570 | 650 | 730 | 2600 |
| Protection (A) | 40/3 | 60/3 | 40/3 | 200/3 |
| Voltage (V) | 400 | 400 | 400 | 400 |
Contact us and our specialists will help you select the appropriate bath volume, operating temperature range and furnace configuration for your production requirements.
Additional parameters
| Category: | Industrial furnaces |
|---|---|
| Warranty: | 2 years |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
