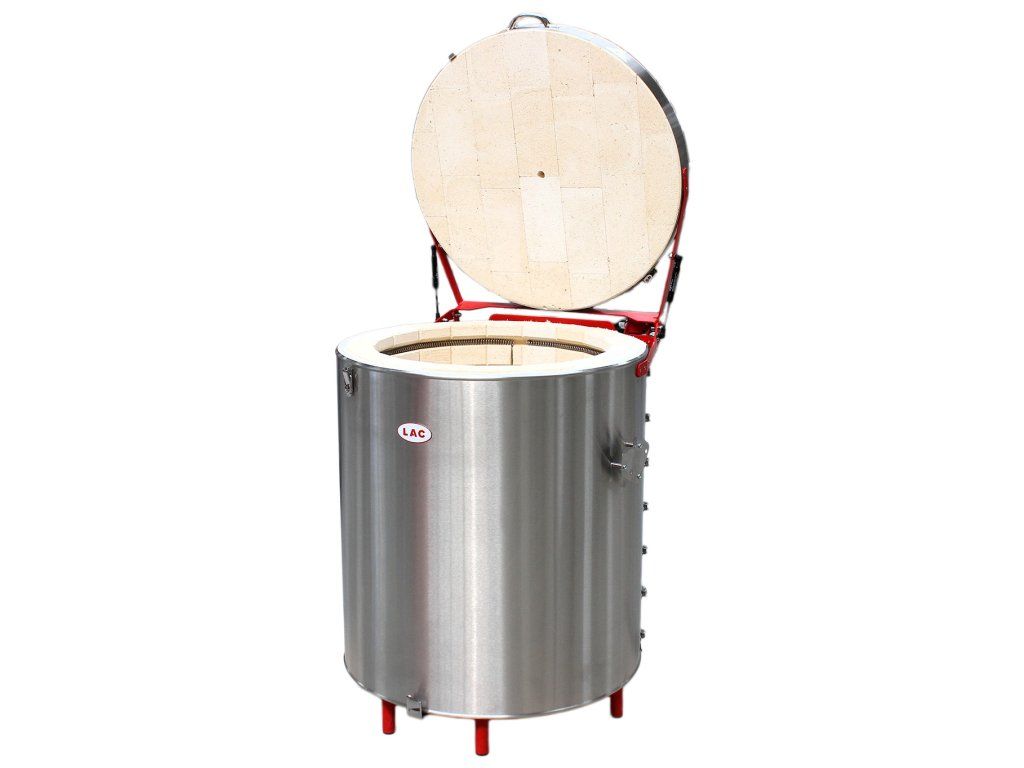

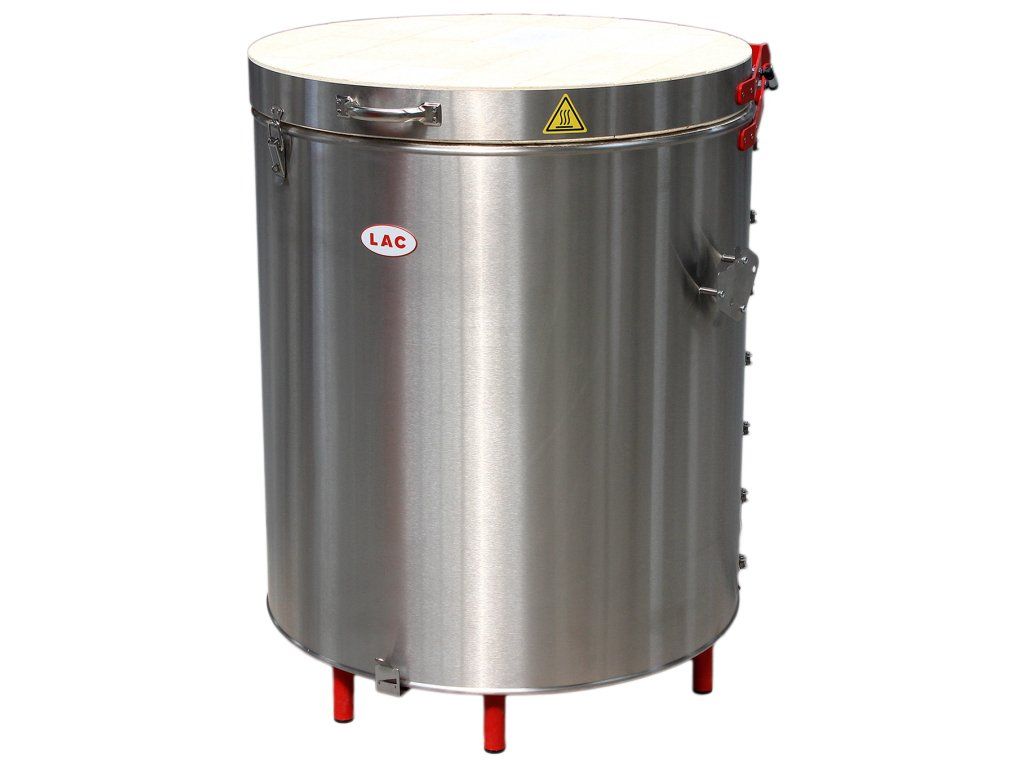

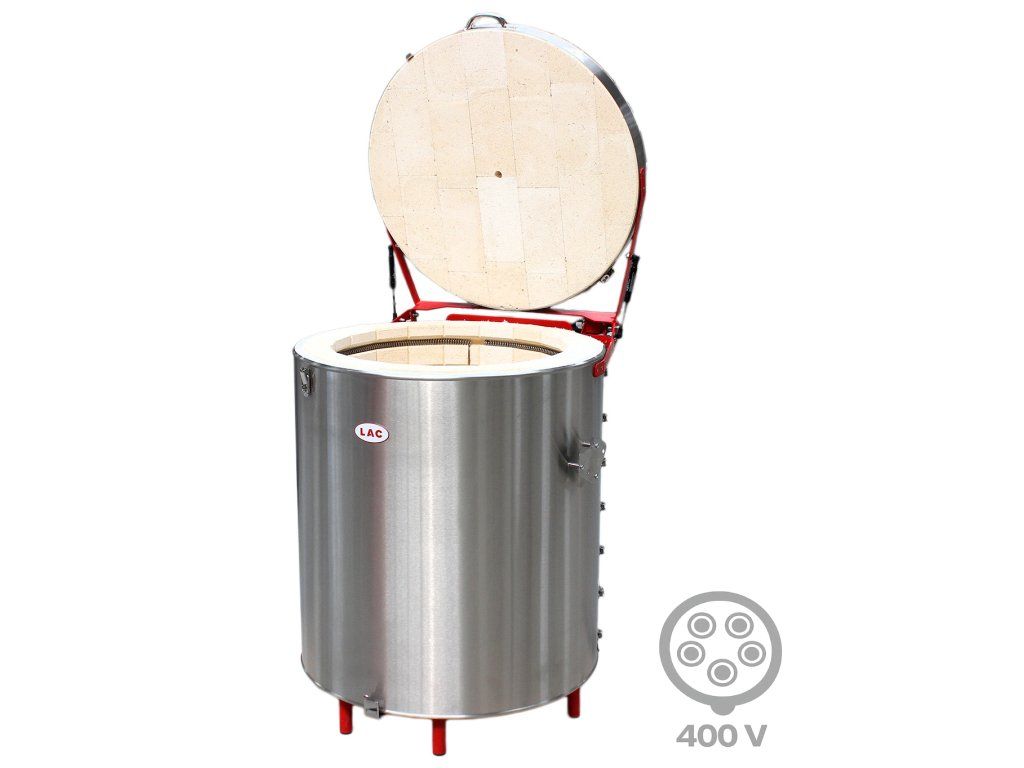

Top-Loading Ceramic Kiln M 160/13 up to 1320 °C – HtCeramic Controller
Max temp: 1320 °C | Volume: 164 l | Voltage: 400 V
Large top-loading ceramic kiln with advanced firing programs for creative workshop use
Looking for a top-loading ceramic kiln with generous firing capacity and more flexible firing control for ceramics, pottery or glass applications?
The LAC M 160/13 with HtCeramic controller combines large kiln capacity with advanced programmable firing control for creative ceramic studios, schools, workshops and demanding ceramic firing.
- You need more advanced firing programs
- You work with different ceramic firing cycles
- You want greater flexibility during firing
- You are looking for a top-loading kiln with large firing capacity
- You work in a studio, school or creative workshop
Key features:
- Top-loading ceramic kiln up to 1320 °C
- HtCeramic programmable controller
- Advanced multi-step firing programs
- Uniform temperature distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney for vapour removal during firing
- Gas strut assisted lid opening
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell
HtCeramic controller
The HtCeramic controller is designed for ceramic firing processes requiring more advanced programmable control and greater flexibility during firing cycles.
- Multi-step firing programs
- Delayed start function
- Flexible firing curve settings
- Suitable for different ceramic and glass firing processes
The controller supports more complex firing schedules, making it suitable for users working with different ceramic materials, glazes and firing techniques.
Typical applications
The M 160/13 with HtCeramic controller is suitable for ceramic and glass firing processes where advanced firing control, programmable firing flexibility and large chamber capacity are required.
- Bisque firing
- Glaze firing
- Studio and artistic ceramics
- Porcelain firing
- Decor firing
- Glass fusing
- Creative ceramic workshops
Main benefits
- Advanced programmable firing control
- Flexible firing programs for different ceramic processes
- Large kiln capacity for studio, workshop and production firing
- Reliable and repeatable firing results
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
Compare available kiln controllers
The M 160/13 is available with different controller options depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL | Standard ceramic firing | Simple and reliable operation |
| HtCeramic This controller |
Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 | Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Compare available kiln controllers or contact us for help selecting the right kiln configuration.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Variants |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 729×901×961 |
| Input in kW: | 9,5 |
| Internal dimensions (w × h × d) mm: | 550×690 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 400 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 164 |
| External dimensions (D×d×h) mm: | 729×901×961 |
| Internal dimensions (D×h) mm: | 550×690 |
| Input in kW: | 9,5 |
| Weight in kg: | 122 |
| Power socket: | CEE16A |
| Protection A: | 16/3 |
| Voltage V: | 400 |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
| Manufacturing company : | LAC, s.r.o. |
|---|---|
| Address : | Topolová 933 667 01 Židlochovice Czech Republic |
| E-mail : | sales@lac.cz |
