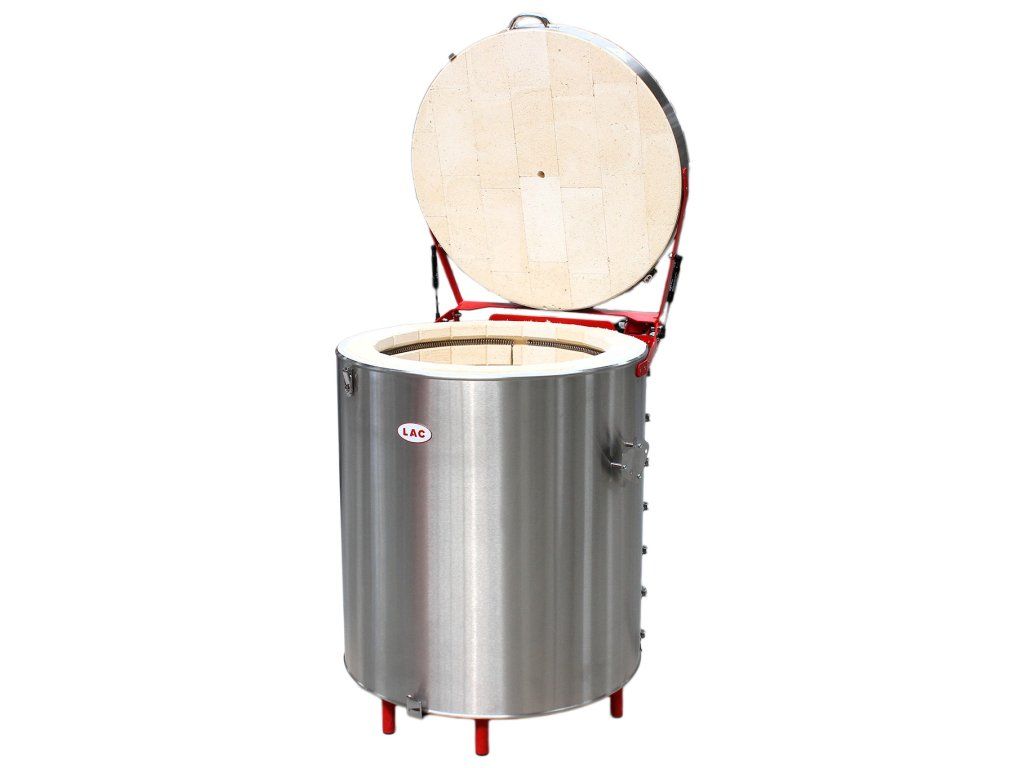

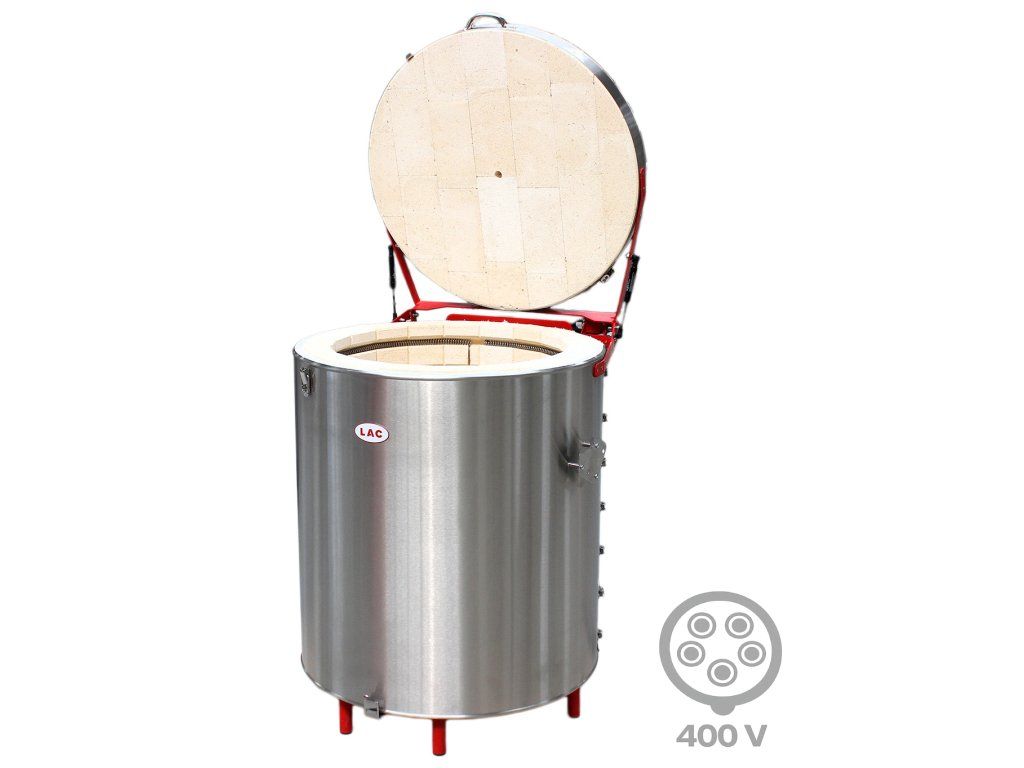

Top-Loading Ceramic Kiln M 160/13 up to 1320 °C – Bentrup TC75 Controller
Max temp: 1320 °C | Volume: 164 l | Voltage: 400 V
Large top-loading ceramic kiln with intuitive Wi-Fi control for comfortable production firing
Looking for a modern top-loading ceramic kiln with comfortable programmable control and generous firing capacity for ceramics, pottery or glass firing?
The LAC M 160/13 with Bentrup TC75 controller combines large kiln capacity with intuitive touchscreen operation and Wi-Fi connectivity for convenient ceramic firing in studios, schools and workshops.
- You want comfortable touchscreen kiln control
- You prefer modern and intuitive operation
- You are looking for Wi-Fi connectivity
- You need a top-loading kiln with large firing capacity
- You work in a studio, creative workshop or school
Key features:
- Top-loading ceramic kiln up to 1320 °C
- Bentrup TC75 touchscreen controller
- Wi-Fi connectivity for comfortable operation
- Intuitive touchscreen interface
- Uniform temperature distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney for vapour removal during firing
- Gas strut assisted lid opening
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell
Bentrup TC75 controller
The Bentrup TC75 controller is designed for comfortable and intuitive ceramic firing control. The touchscreen interface and Wi-Fi connectivity simplify everyday kiln operation and improve firing workflow.
- Modern touchscreen operation
- Wi-Fi enabled firing control
- Comfortable program management
- Suitable for everyday ceramic and glass firing
The TC75 controller combines user-friendly operation with advanced programmable firing control, making it suitable for ceramic studios, schools and creative workshops.
Typical applications
The M 160/13 with Bentrup TC75 controller is suitable for ceramic and glass firing processes where intuitive operation, comfortable firing management and large chamber capacity are important.
- Bisque firing
- Glaze firing
- Studio and artistic ceramics
- Porcelain firing
- Decor firing
- Glass fusing
- Creative ceramic workshops
Main benefits
- Comfortable touchscreen kiln operation
- Wi-Fi connectivity for modern firing workflow
- Large kiln capacity for studio, workshop and production firing
- Reliable and repeatable firing results
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
Compare available kiln controllers
The M 160/13 is available with different controller options depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL | Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 This controller |
Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Compare available kiln controllers or contact us for help choosing the right kiln configuration.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Variants |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 729×901×961 |
| Input in kW: | 9,5 |
| Internal dimensions (w × h × d) mm: | 550×690 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 400 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 164 |
| External dimensions (D×d×h) mm: | 729×901×961 |
| Internal dimensions (D×h) mm: | 550×690 |
| Input in kW: | 9,5 |
| Weight in kg: | 122 |
| Power socket: | CEE16A |
| Protection A: | 16/3 |
| Voltage V: | 400 |
| The item has been sold out… | |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
