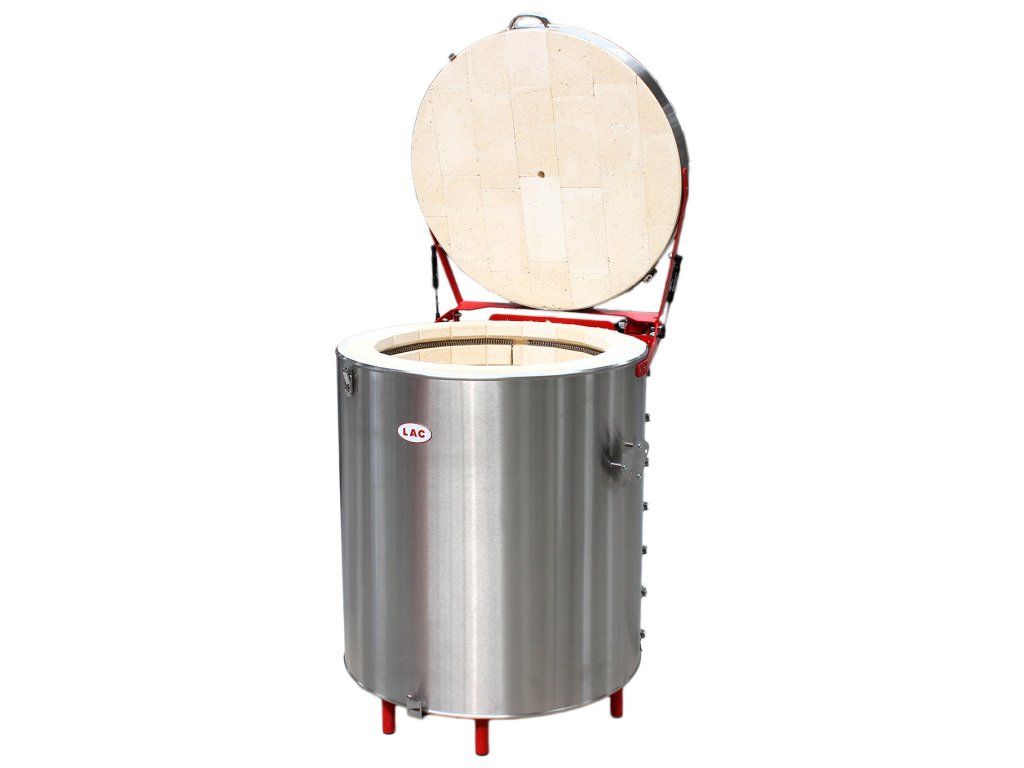

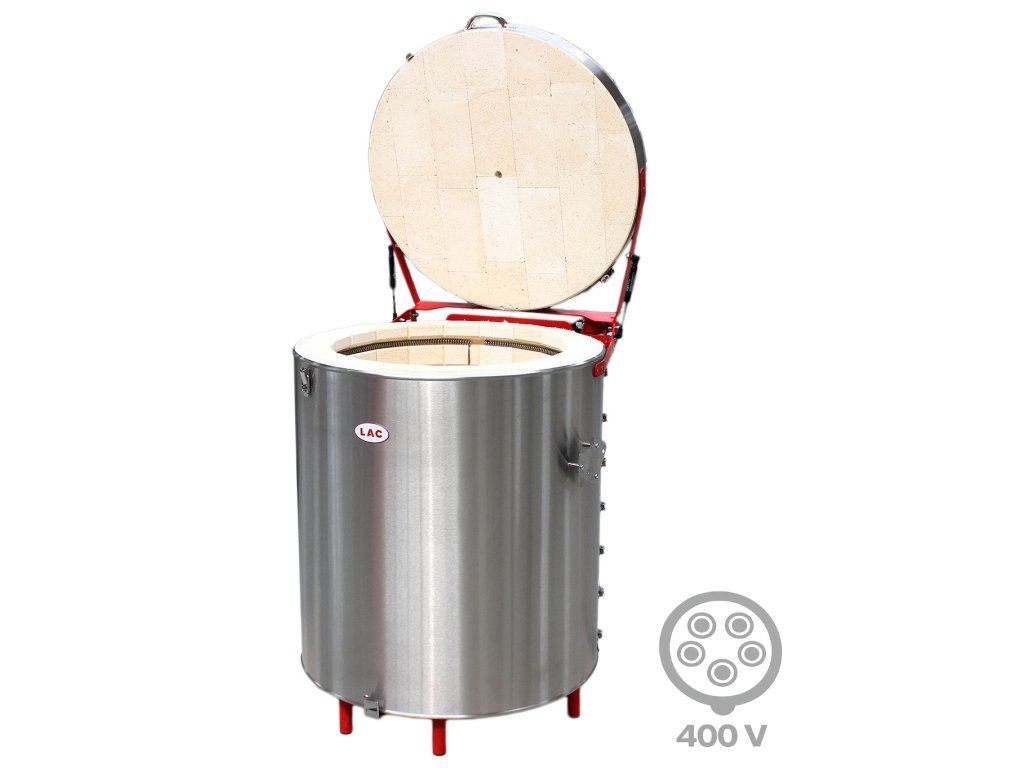

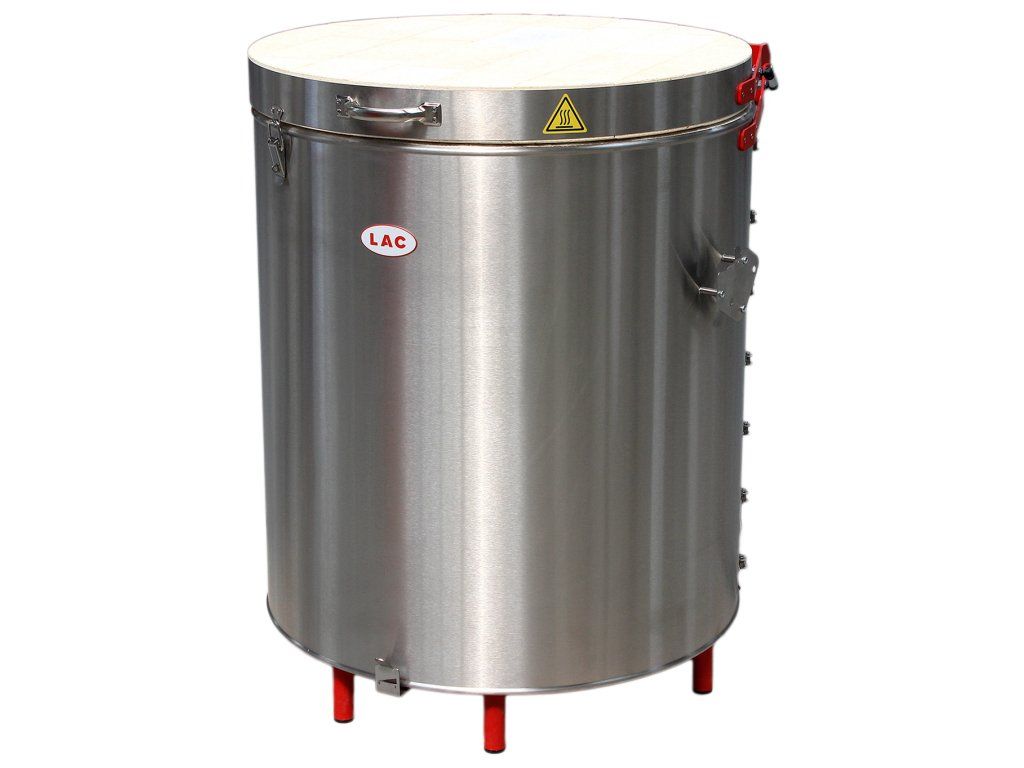

Top-Loading Ceramic Kiln M 160/13 up to 1320 °C – Bentrup TC95 Controller
Large top-loading ceramic kiln with advanced firing management for demanding production processes
Looking for a top-loading ceramic kiln with advanced programmable control and generous firing capacity for professional ceramic, porcelain or glass firing?
The LAC M 160/13 with Bentrup TC95 controller combines large kiln capacity with advanced firing management, intuitive graphical control and flexible programming for demanding ceramic applications.
- You require advanced programmable firing control
- You work with complex firing schedules or demanding ceramic processes
- You need greater control over firing curves
- You are looking for a top-loading kiln with large firing capacity and professional control features
- You work in a professional studio, workshop or educational environment
Key features:
- Top-loading ceramic kiln up to 1320 °C
- Bentrup TC95 advanced touchscreen controller
- Graphical firing program management
- Flexible multi-step firing control
- Uniform temperature distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney for vapour removal during firing
- Gas strut assisted lid opening
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell

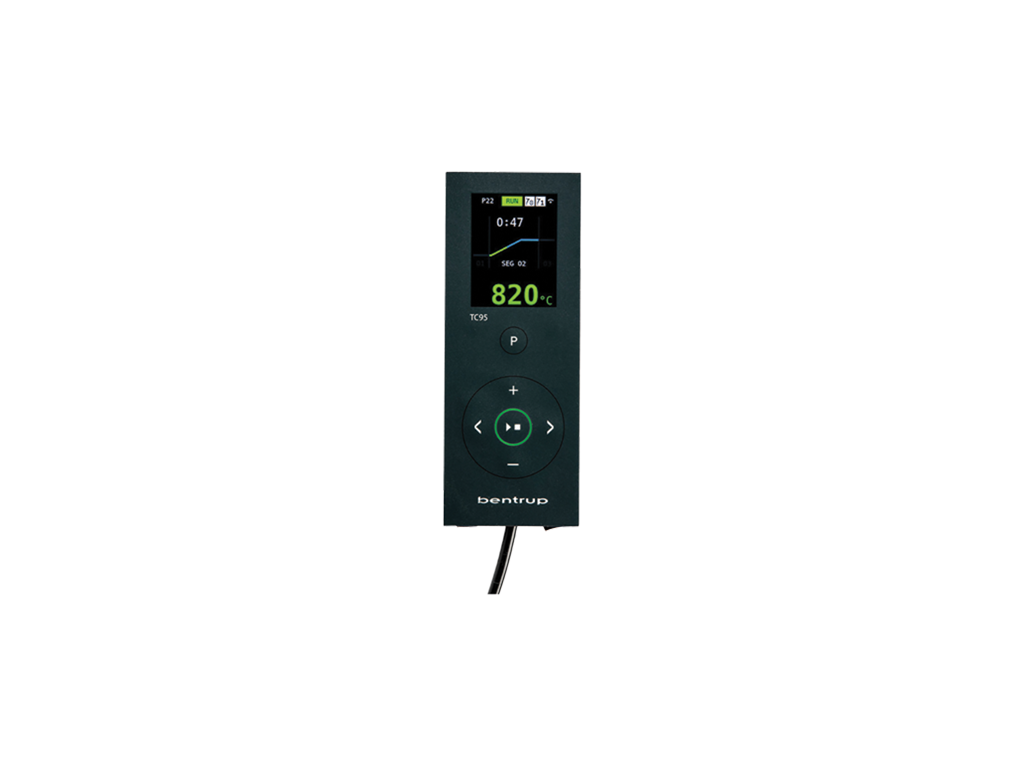

Bentrup TC95 controller
The Bentrup TC95 controller is designed for advanced ceramic firing processes requiring flexible program management and detailed firing control. The graphical interface supports comfortable operation and precise firing setup.
- Advanced graphical touchscreen control
- Flexible multi-step firing programs
- Detailed firing curve management
- Suitable for demanding ceramic and glass firing processes
The TC95 controller is suitable for users who require higher flexibility during firing and more detailed process management for professional ceramic production or advanced studio work.
Typical applications
The M 160/13 with Bentrup TC95 controller is suitable for ceramic and glass firing processes where advanced firing control, precise temperature management and large chamber capacity are important.
- Bisque firing
- Glaze firing
- Professional studio ceramics
- Porcelain firing
- Decor firing
- Glass fusing
- Advanced ceramic applications
Main benefits
- Advanced firing management for demanding ceramic processes
- Graphical touchscreen kiln operation
- Flexible multi-step firing programs
- Large kiln capacity for studio, workshop and production firing
- Reliable and repeatable firing results
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
Compare available kiln controllers
The M 160/13 is available with different controller options depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL | Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 | Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 This controller |
Demanding ceramic applications | Advanced programming and graphic display |
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Compare available kiln controllers or contact us for help choosing the right kiln configuration.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Variants |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 729×901×961 |
| Input in kW: | 9,5 |
| Internal dimensions (w × h × d) mm: | 550×690 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 400 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 164 |
| External dimensions (D×d×h) mm: | 729×901×961 |
| Internal dimensions (D×h) mm: | 550×690 |
| Input in kW: | 9,5 |
| Weight in kg: | 122 |
| Power socket: | CEE16A |
| Protection A: | 16/3 |
| Voltage V: | 400 |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
