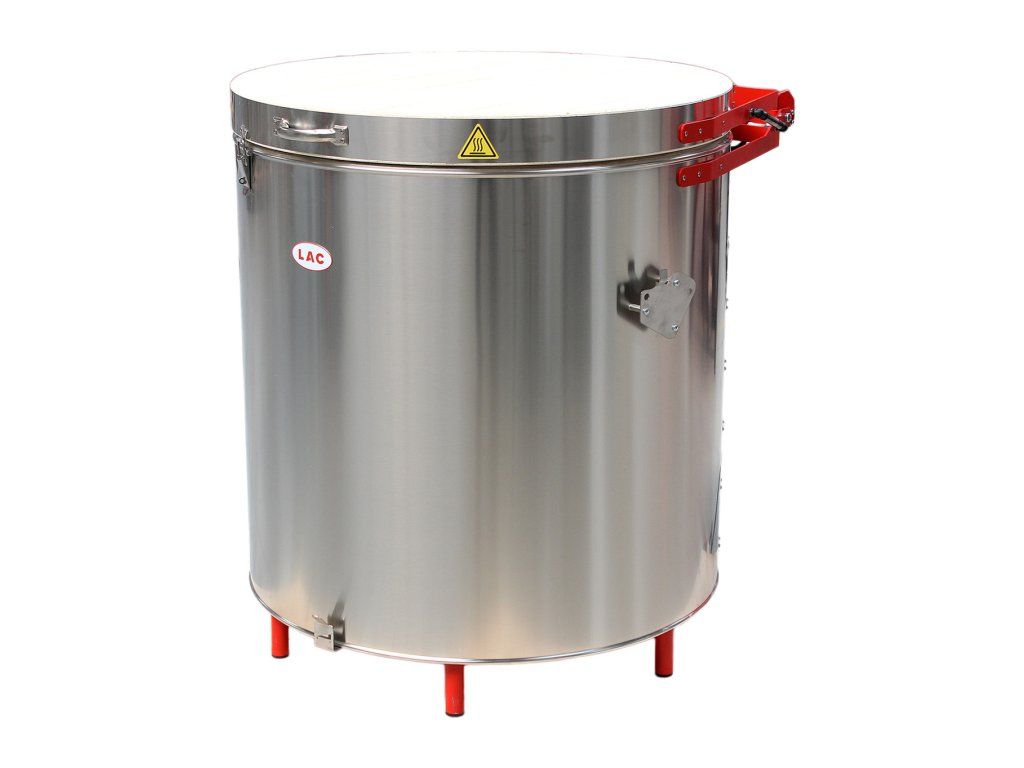

Top-Loading Ceramic Kiln M 220/13 up to 1320 °C
Max temp: 1320 °C | Volume: 226 l | Voltage: 400 V
Very large top-loading ceramic kiln with simple programmable control for production firing
Need a reliable top-loading ceramic kiln with straightforward operation and very large firing capacity for ceramics, pottery or glass firing?
The LAC M 220/13 with Ht40AL controller combines maximum kiln capacity in the M series with simple programmable firing control for ceramic workshops, schools and regular production use.
- You want simple and reliable firing control
- You need a kiln for regular pottery and ceramic firing
- You are looking for a top-loading kiln with very large firing capacity
- You prefer easy operation without complicated programming
- You work in a school, ceramic workshop or production environment
Key features:
- Top-loading ceramic kiln up to 1320 °C
- Ht40AL programmable controller
- Simple and intuitive operation
- Uniform temperature distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney for vapour removal during firing

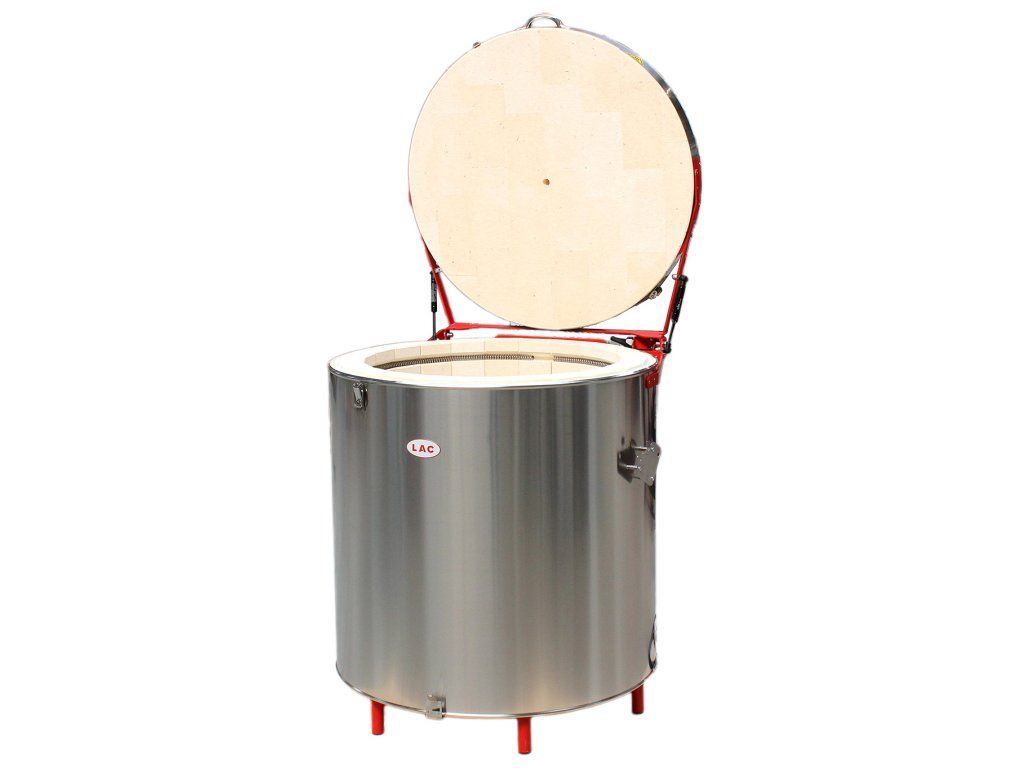

- Gas strut assisted lid opening
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell

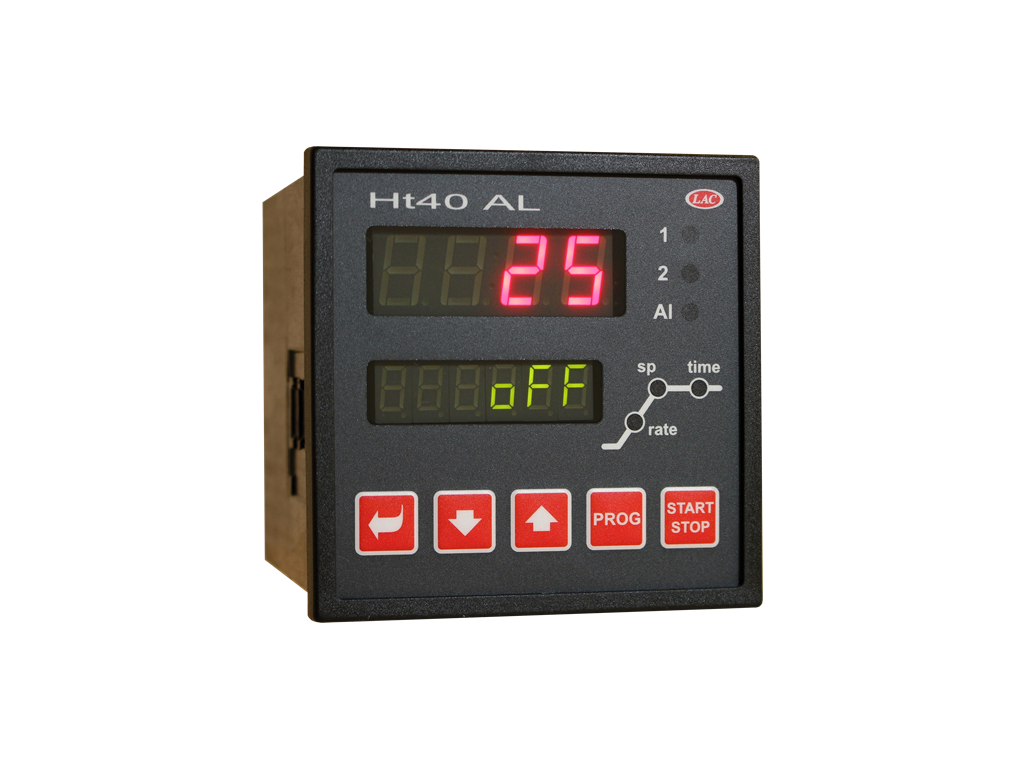

Ht40AL controller
The Ht40AL is designed for simple and reliable ceramic firing control. It is suitable for users who need comfortable everyday operation without advanced multi-level programming.
- Simple program setting
- Reliable firing control
- Suitable for standard ceramic firing processes
- Easy everyday operation
The controller is mounted outside the kiln and connected using a removable connector system for practical handling and service accessibility.
Typical applications
The M 220/13 with Ht40AL controller is suitable for controlled firing processes in ceramics and glass applications where reliable operation, easy handling and very large firing capacity are important.
- Bisque firing
- Glaze firing
- Pottery and studio ceramics
- Porcelain firing
- Decor firing
- Educational ceramic applications
- Regular workshop and production firing
Main benefits
- Simple and intuitive kiln operation
- Reliable programmable firing control
- Very large kiln capacity for workshop and production firing
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
- Suitable for schools, studios and ceramic workshops
Compare available kiln controllers
The M 220/13 is available with different controller options depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL This controller |
Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 | Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Compare available kiln controllers or contact us for help choosing the right kiln configuration.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Kilns & Controllers |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 824×998×961 |
| Input in kW: | 11,0 |
| Internal dimensions (w × h × d) mm: | 647×690 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 400 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 226 |
| External dimensions (D×d×h) mm: | 824×998×961 |
| Internal dimensions (D×h) mm: | 647×690 |
| Input in kW: | 11,0 |
| Weight in kg: | 145 |
| Power socket: | CEE16A |
| Protection A: | 16/3 |
| Voltage V: | 400 |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
| Manufacturing company : | LAC, s.r.o. |
|---|---|
| Address : | Topolová 933 667 01 Židlochovice Czech Republic |
| E-mail : | sales@lac.cz |
