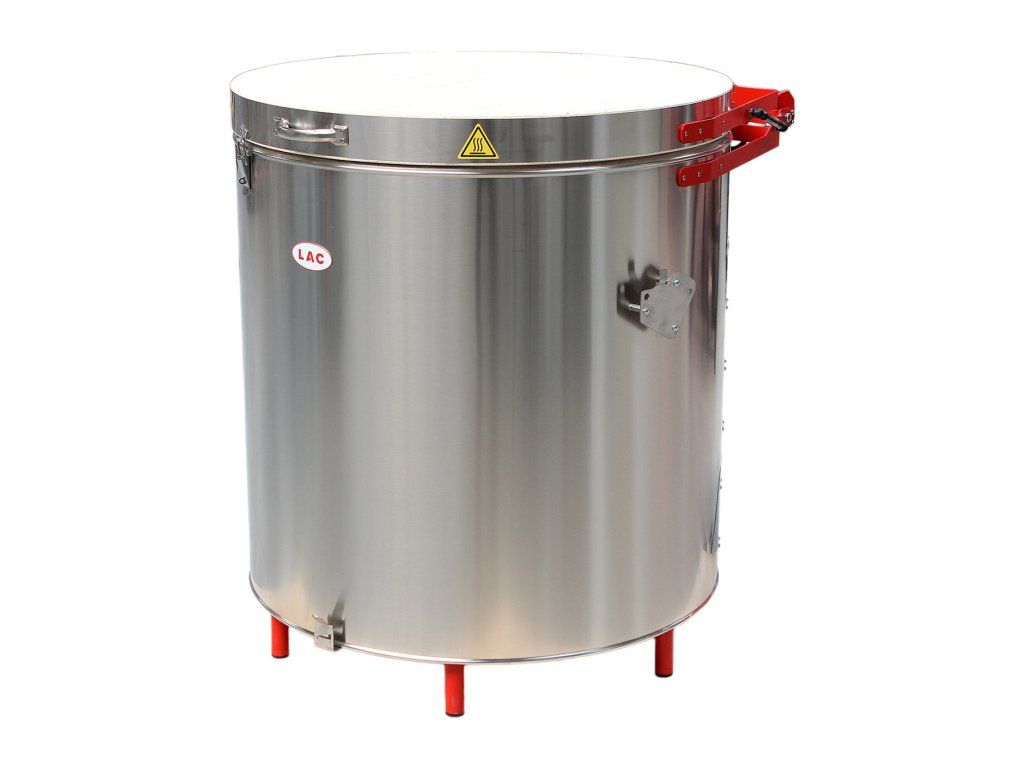

Top-Loading Ceramic Kiln M 220/13
Max temp: 1320 °C | Volume: 226 l | Voltage: 400 V
Top-loading ceramic kiln M 220/13 for pottery, ceramics and glass firing
Looking for a reliable top-loading ceramic kiln with very large firing capacity for ceramic workshops, schools or professional ceramic production?
The LAC M 220/13 is a high-capacity top-loading kiln up to 1320 °C designed for consistent firing results, efficient operation and comfortable use in ceramic and glass applications.
- You need a top-loading ceramic kiln with very large firing capacity
- You work with pottery, ceramics, porcelain or glass
- You require repeatable firing results
- You are looking for a kiln suitable for regular workshop, school or production use
- You want to choose between different programmable kiln controllers
Key features:
- Maximum temperature up to 1320 °C

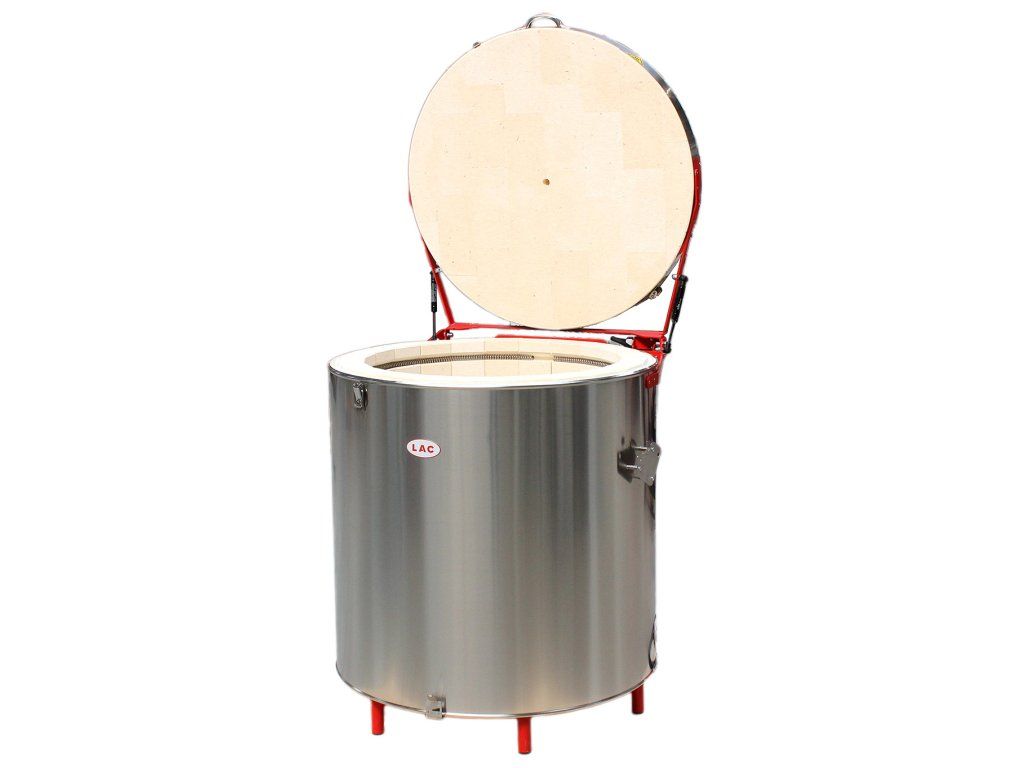

- Top-loading kiln design for comfortable loading and unloading
- Uniform temperature rise and distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney preventing condensation of vapours during firing
- Gas strut assisted lid opening for safe and comfortable operation
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell
- Selectable programmable kiln controllers
Typical applications
The M 220/13 is designed for controlled ceramic and glass firing processes where stable thermal conditions, repeatable firing cycles and very large chamber capacity are required.
- Bisque firing
- Glaze firing
- Pottery and studio ceramics
- Porcelain firing
- Decor firing
- Glass fusing
- Educational and professional ceramic applications
Available kiln controllers
Different programmable controllers are available depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL | Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 | Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Main benefits
- Very large kiln capacity for workshop and production firing
- Reliable and repeatable firing results
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
- Selectable programmable kiln controllers
- Suitable for educational and professional ceramic firing
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Contact us and we will help you choose the right kiln configuration for your application.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Variants |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 824×998×961 |
| Input in kW: | 11,0 |
| Internal dimensions (w × h × d) mm: | 647×690 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 400 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 226 |
| External dimensions (D×d×h) mm: | 824×998×961 |
| Internal dimensions (D×h) mm: | 647×690 |
| Input in kW: | 11,0 |
| Weight in kg: | 145 |
| Power socket: | CEE16A |
| Protection A: | 16/3 |
| Voltage V: | 400 |
| The item has been sold out… | |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
