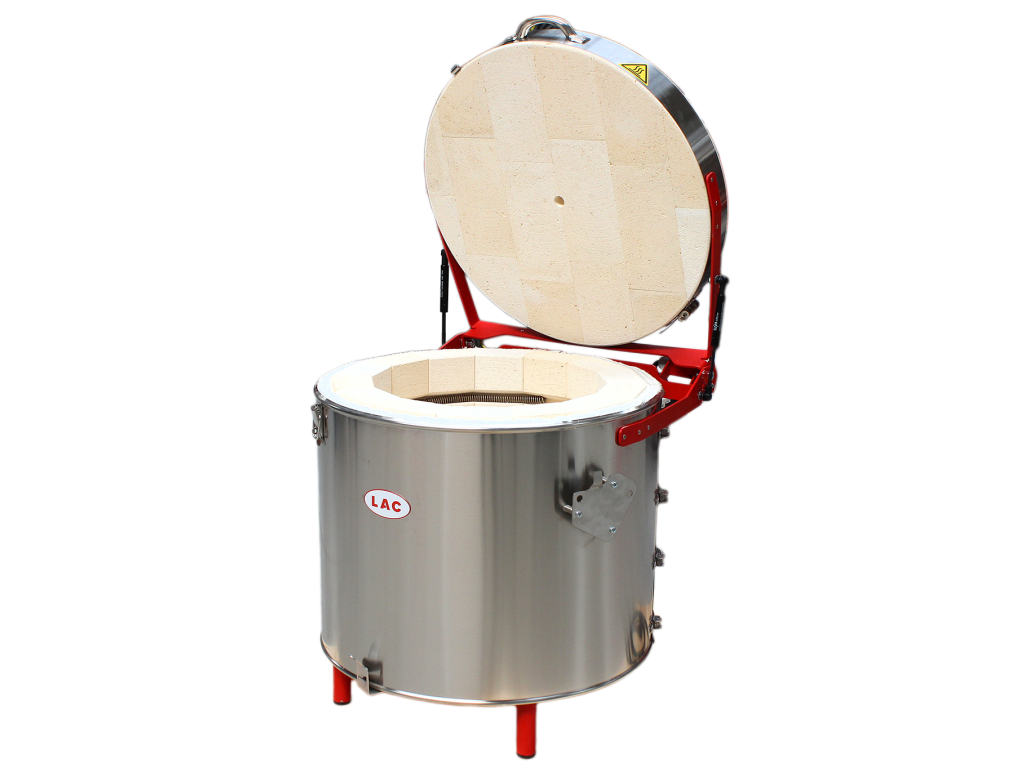

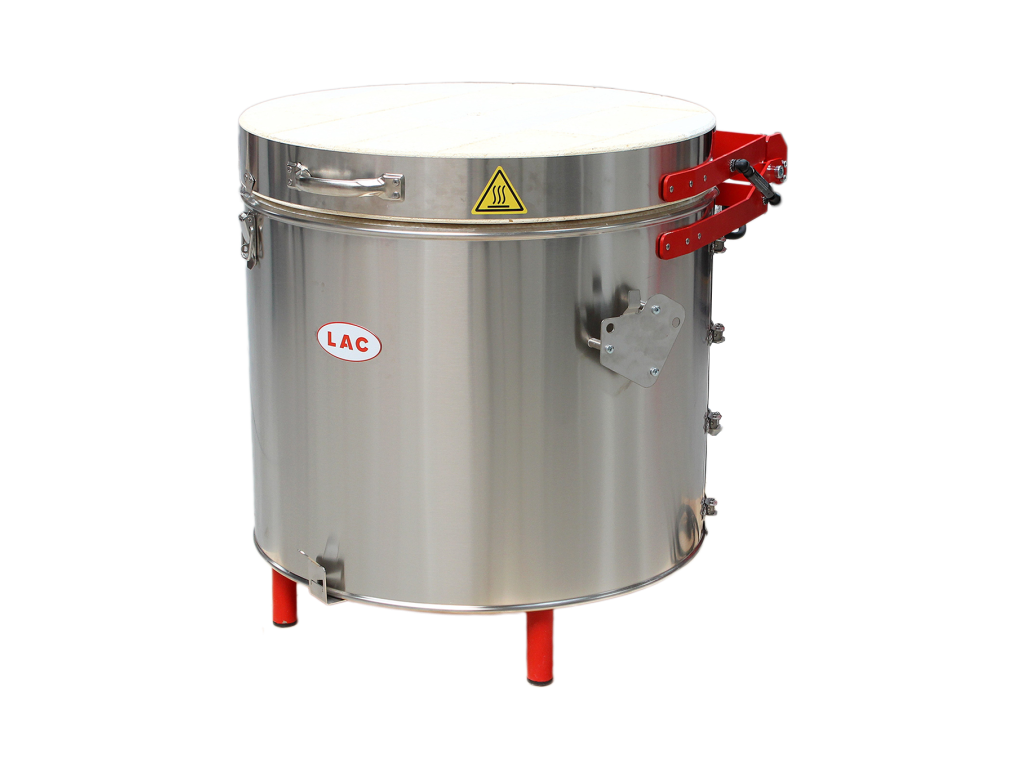

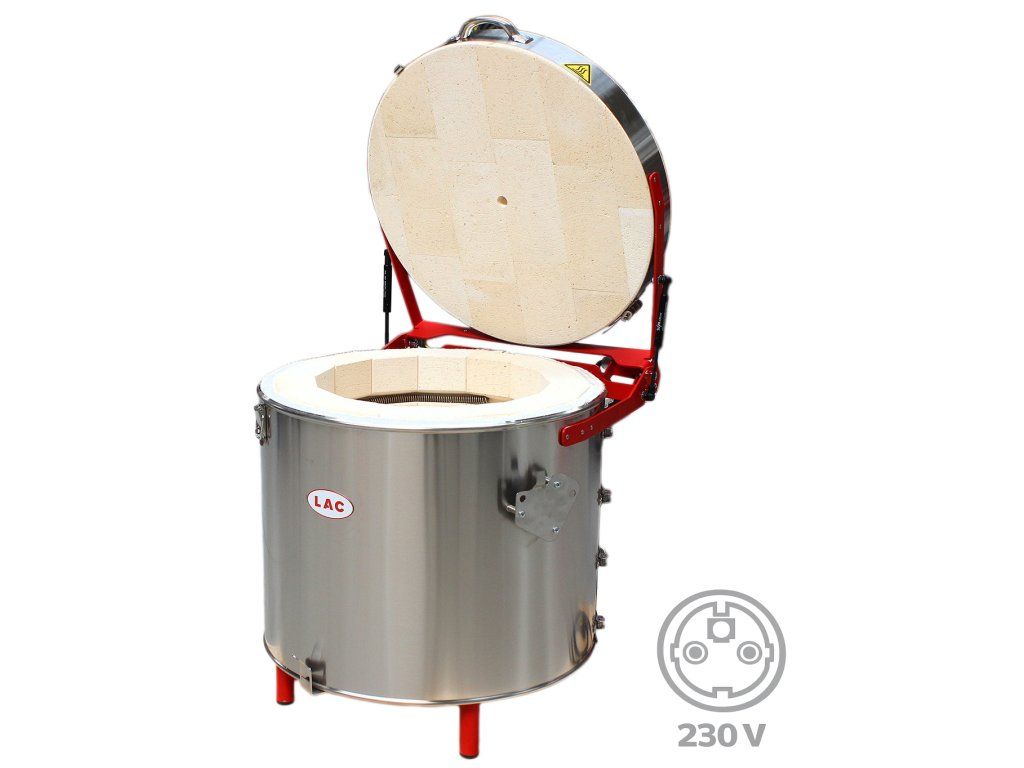

Top-Loading Ceramic Kiln M 30/13 up to 1320 °C
Max temp: 1320 °C | Volume: 38 l | Voltage: 230 V
Compact top-loading ceramic kiln with simple programmable control for everyday firing
Need a reliable top-loading ceramic kiln with straightforward operation for ceramics, pottery or glass firing?
The LAC M 30/13 with Ht40AL controller combines compact kiln design with simple programmable firing control for hobby studios, schools and everyday ceramic work.
- You want simple and reliable firing control
- You need a kiln for everyday pottery and ceramic firing
- You are looking for a compact top-loading kiln
- You prefer easy operation without complicated programming
- You work in a studio, school or hobby workshop
Key features:
- Top-loading ceramic kiln up to 1320 °C
- Ht40AL programmable controller
- Simple and intuitive operation
- Uniform temperature distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney for vapour removal during firing
- Gas strut assisted lid opening
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell

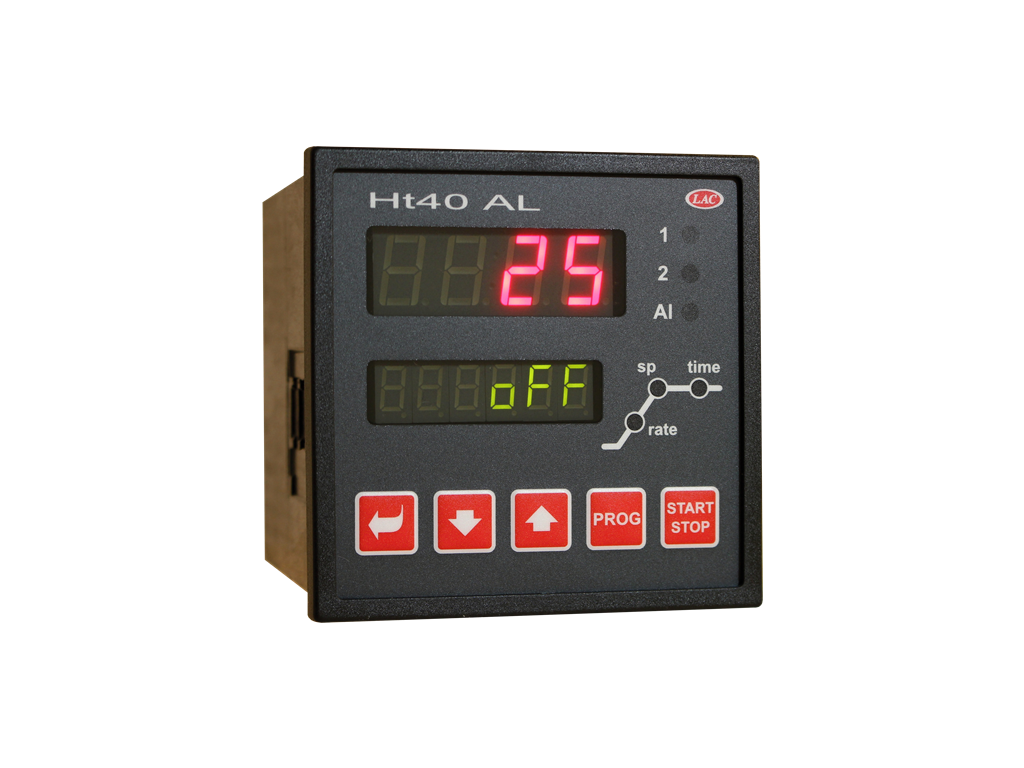

Ht40AL controller
The Ht40AL is designed for simple and reliable ceramic firing control. It is suitable for users who need comfortable everyday operation without advanced multi-level programming.
- Simple program setting
- Reliable firing control
- Suitable for standard ceramic firing processes
- Easy everyday operation
The controller is mounted outside the kiln and connected using a removable connector system for practical handling and service accessibility.
Typical applications
The M 30/13 with Ht40AL controller is suitable for controlled firing processes in ceramics and glass applications where reliable operation and easy handling are important.
- Bisque firing
- Glaze firing
- Pottery and studio ceramics
- Porcelain firing
- Decor firing
- Educational ceramic applications
- Hobby ceramic firing
Main benefits
- Simple and intuitive kiln operation
- Reliable programmable firing control
- Compact kiln size for smaller studios and workshops
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
- Suitable for hobby and everyday ceramic firing
Compare available kiln controllers
The M 30/13 is available with different controller options depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL This controller |
Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 | Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Compare available kiln controllers or contact us for help choosing the right kiln configuration.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Kilns & Controllers |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 560×724×620 |
| Input in kW: | 3,5 |
| Internal dimensions (w × h × d) mm: | 374×345 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 230 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 38 |
| External dimensions (D×d×h) mm: | 560×724×620 |
| Internal dimensions (D×h) mm: | 374×345 |
| Input in kW: | 3,5 |
| Weight in kg: | 60 |
| Power socket: | Schuko |
| Protection A: | 16/1 |
| Voltage V: | 230 |
| The item has been sold out… | |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
