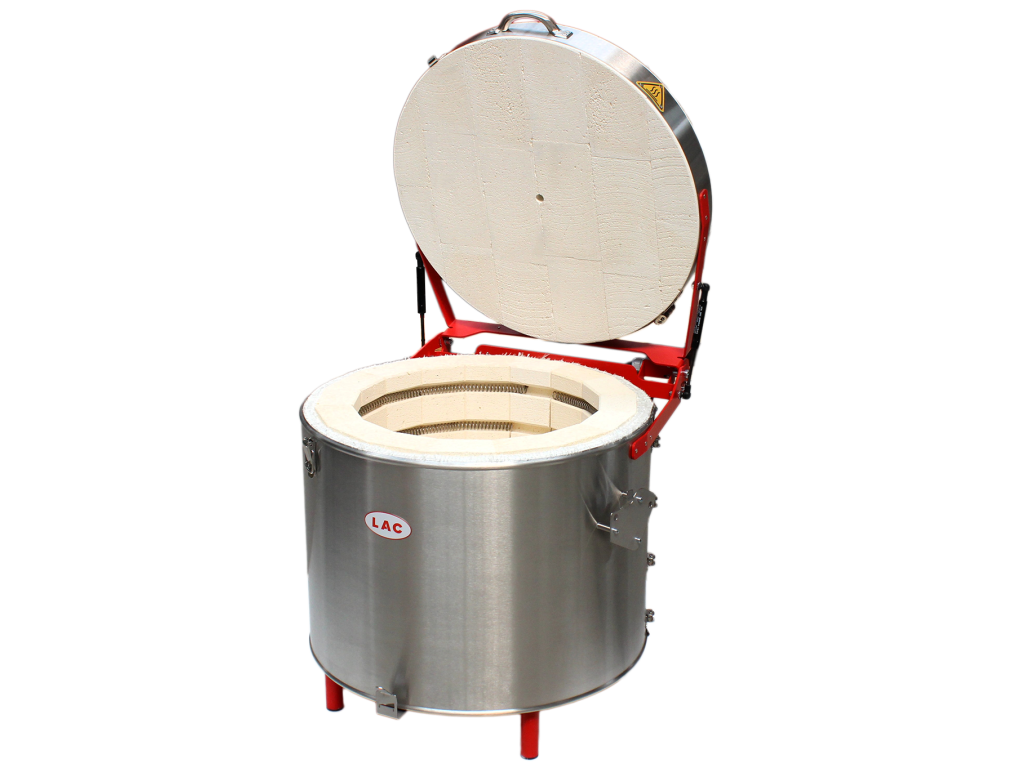

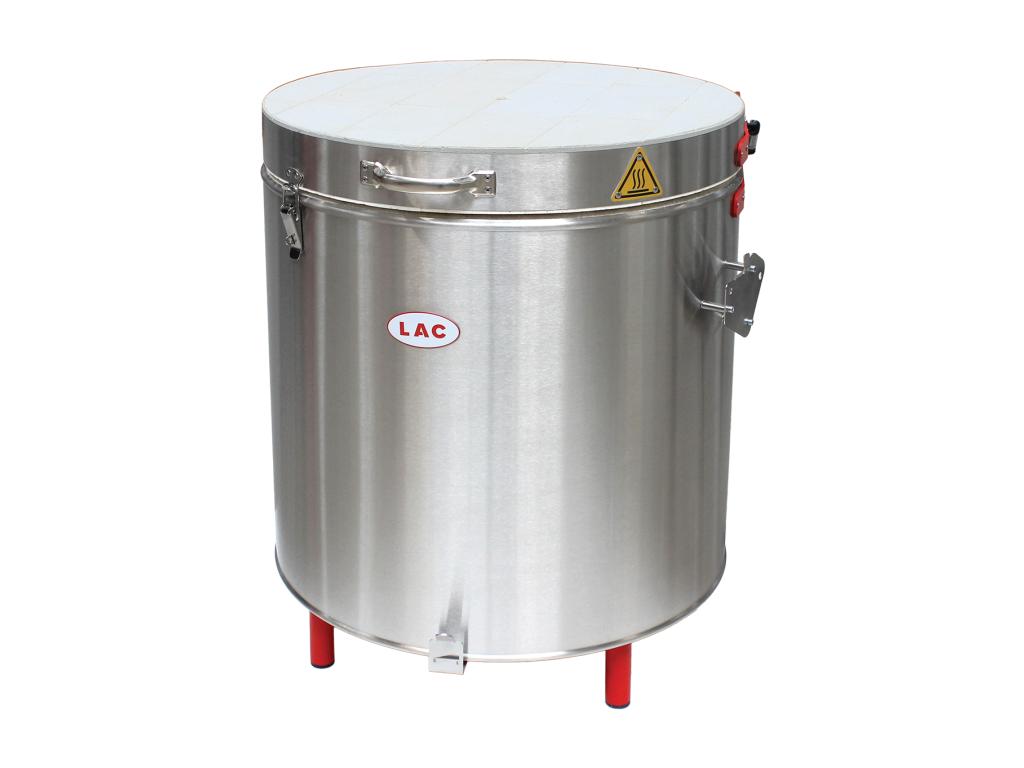

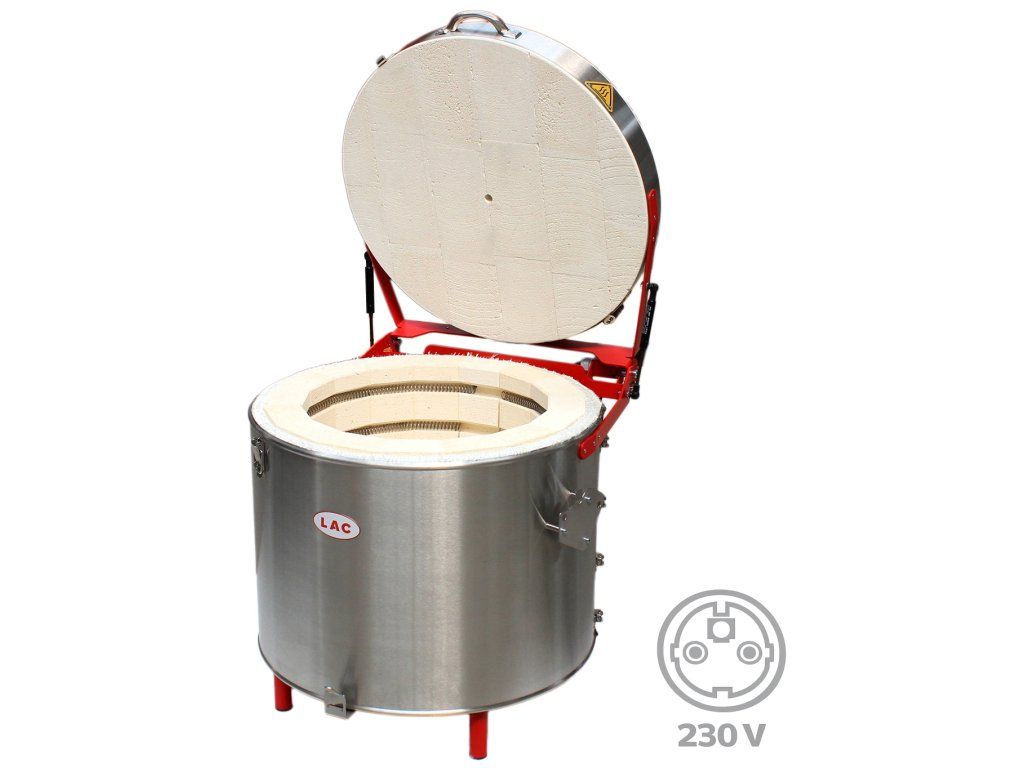

Top-Loading Ceramic Kiln M 45/13 (230 V) up to 1320 °C
Max temp: 1320 °C | Volume: 46 l | Voltage: 230 V
230 V top-loading ceramic kiln with simple programmable control for everyday firing
Need a reliable top-loading ceramic kiln with straightforward operation and 230 V power supply for ceramics, pottery or glass firing?
The LAC M 45/13 (230 V) with Ht40AL controller combines practical kiln capacity, single-phase power connection and simple programmable firing control for hobby studios, schools and regular ceramic work.
- You want simple and reliable firing control
- You need a kiln for regular pottery and ceramic firing
- You prefer a kiln version with 230 V power supply
- You are looking for a top-loading kiln with practical chamber capacity
- You prefer easy operation without complicated programming
- You work in a studio, school or hobby workshop
Key features:
- Top-loading ceramic kiln up to 1320 °C
- 230 V power supply for selected installation conditions
- Ht40AL programmable controller
- Simple and intuitive operation
- Uniform temperature distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney for vapour removal during firing
- Gas strut assisted lid opening
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell

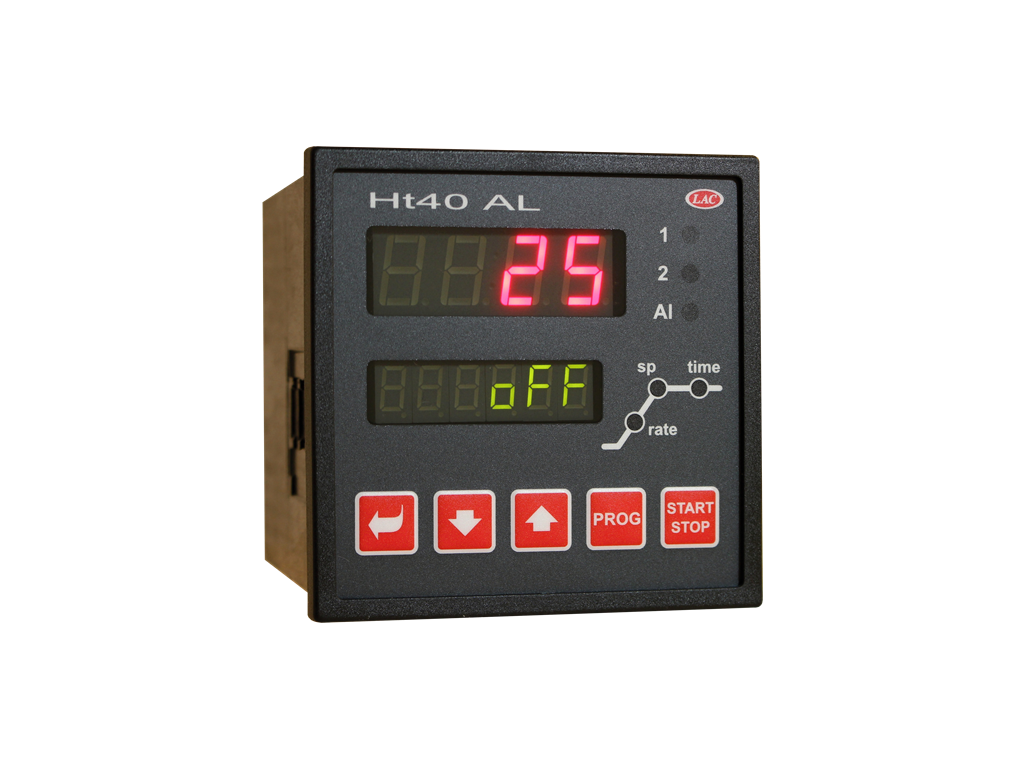

Ht40AL controller
The Ht40AL is designed for simple and reliable ceramic firing control. It is suitable for users who need comfortable everyday operation without advanced multi-level programming.
- Simple program setting
- Reliable firing control
- Suitable for standard ceramic firing processes
- Easy everyday operation
The controller is mounted outside the kiln and connected using a removable connector system for practical handling and service accessibility.
Typical applications
The M 45/13 (230 V) with Ht40AL controller is suitable for controlled firing processes in ceramics and glass applications where reliable operation, easy handling and practical firing capacity are important.
- Bisque firing
- Glaze firing
- Pottery and studio ceramics
- Porcelain firing
- Decor firing
- Educational ceramic applications
- Hobby ceramic firing
Main benefits
- Simple and intuitive kiln operation
- Reliable programmable firing control
- 230 V version for selected installation conditions
- Practical kiln capacity for regular studio firing
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
- Suitable for hobby, school and everyday ceramic firing
Compare available kiln controllers
The M 45/13 (230 V) is available with different controller options depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL This controller |
Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 | Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Compare available kiln controllers or contact us for help choosing the right kiln configuration.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Kilns & Controllers |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 598×764×620 |
| Input in kW: | 3,5 |
| Internal dimensions (w × h × d) mm: | 412×345 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 230 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 46 |
| External dimensions (D×d×h) mm: | 598×764×620 |
| Internal dimensions (D×h) mm: | 412×345 |
| Input in kW: | 3,5 |
| Weight in kg: | 68 |
| Power socket: | Schuko |
| Protection A: | 16/1 |
| Voltage V: | 230 |
