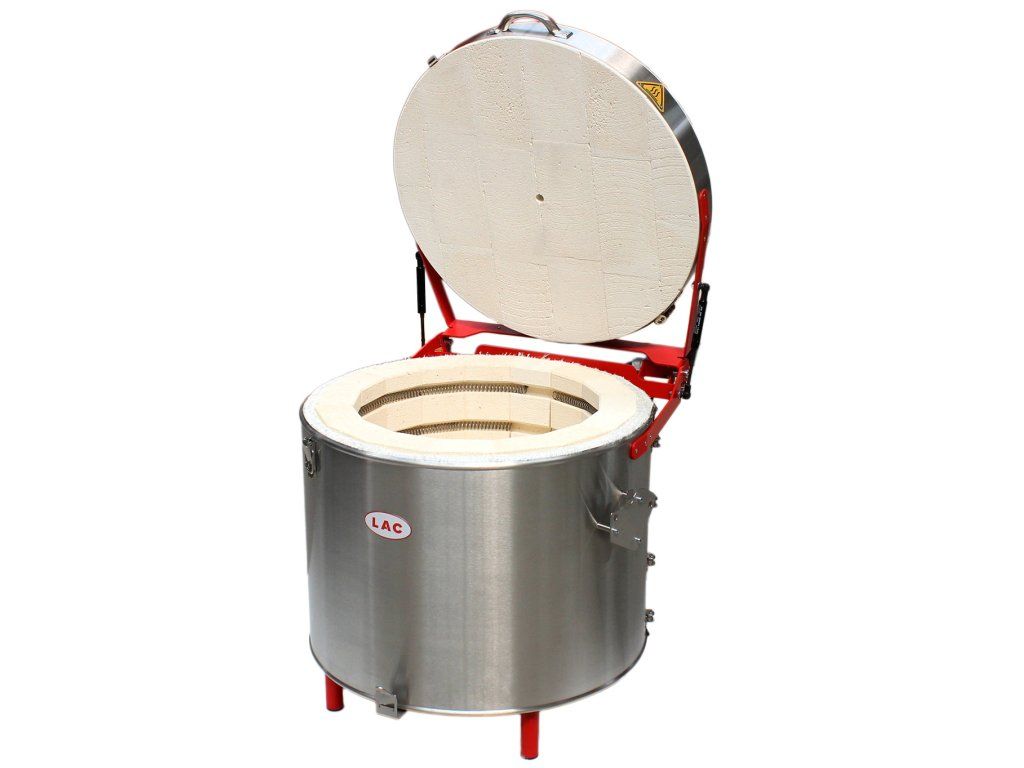

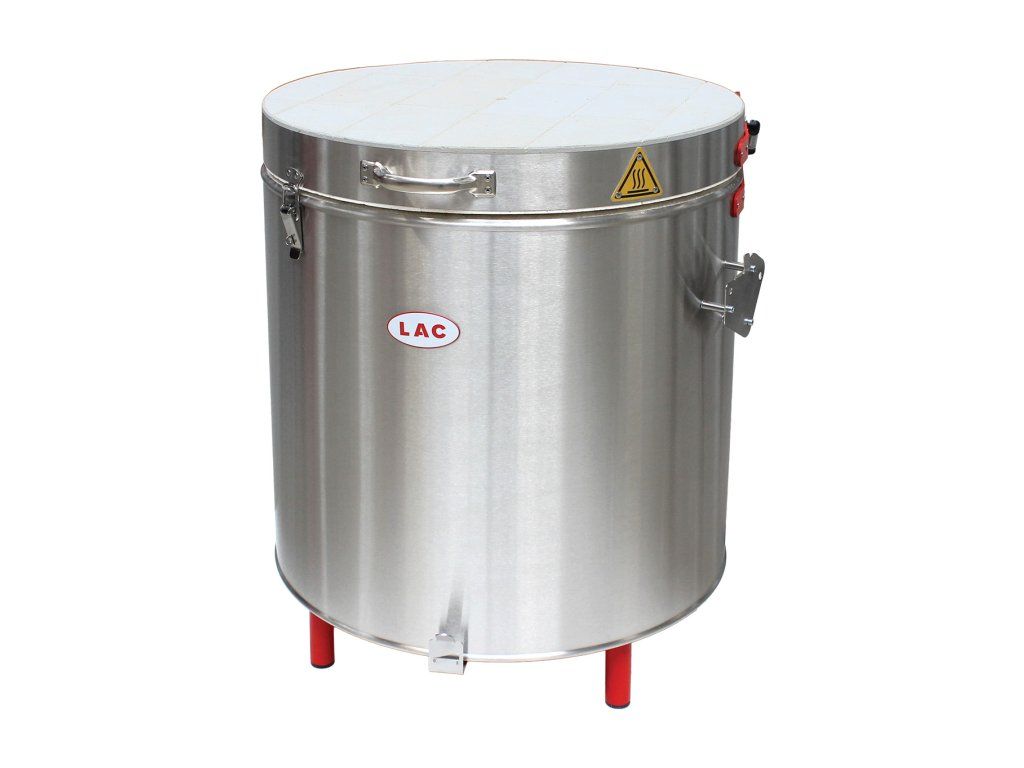

Top-Loading Ceramic Kiln M 45/13 (230 V) up to 1320 °C – Bentrup TC75 Controller
Max temp: 1320 °C | Volume: 46 l | Voltage: 230 V
230 V top-loading ceramic kiln with intuitive Wi-Fi control for comfortable everyday firing
Looking for a modern top-loading ceramic kiln with 230 V power supply and comfortable programmable control for ceramics, pottery or glass firing?
The LAC M 45/13 (230 V) with Bentrup TC75 controller combines practical kiln capacity, single-phase power connection, intuitive touchscreen operation and Wi-Fi connectivity for convenient everyday ceramic firing.
- You want comfortable touchscreen kiln control
- You prefer modern and intuitive operation
- You are looking for Wi-Fi connectivity
- You prefer a kiln version with 230 V power supply
- You need a top-loading kiln with practical chamber capacity
- You work in a studio, creative workshop or school
Key features:
- Top-loading ceramic kiln up to 1320 °C
- 230 V power supply for selected installation conditions
- Bentrup TC75 touchscreen controller
- Wi-Fi connectivity for comfortable operation
- Intuitive touchscreen interface
- Uniform temperature distribution throughout the kiln chamber
- Heating coils inserted into horizontal grooves in the side walls
- Ventilation chimney for vapour removal during firing
- Gas strut assisted lid opening
- Contactless switching relay for smooth and quiet operation
- Brushed stainless steel shell
Bentrup TC75 controller
The Bentrup TC75 controller is designed for comfortable and intuitive ceramic firing control. The touchscreen interface and Wi-Fi connectivity simplify everyday kiln operation and improve firing workflow.
- Modern touchscreen operation
- Wi-Fi enabled firing control
- Comfortable program management
- Suitable for everyday ceramic and glass firing
The TC75 controller combines user-friendly operation with advanced programmable firing control, making it suitable for hobby ceramics, schools and creative ceramic studios.
Typical applications
The M 45/13 (230 V) with Bentrup TC75 controller is suitable for ceramic and glass firing processes where intuitive operation, comfortable firing management and practical chamber capacity are important.
- Bisque firing
- Glaze firing
- Studio and artistic ceramics
- Porcelain firing
- Decor firing
- Glass fusing
- Creative ceramic workshops
Main benefits
- Comfortable touchscreen kiln operation
- Wi-Fi connectivity for modern firing workflow
- 230 V version for selected installation conditions
- Practical kiln capacity for regular studio firing
- Reliable and repeatable firing results
- Efficient insulation reducing electricity consumption
- Comfortable top-loading operation
Compare available kiln controllers
The M 45/13 (230 V) is available with different controller options depending on the required firing control, programming flexibility and user comfort.
| Controller | Best for | Main advantage |
|---|---|---|
| Ht40AL | Standard ceramic firing | Simple and reliable operation |
| HtCeramic | Advanced firing programs | Multi-step firing and delayed start |
| Bentrup TC75 This controller |
Comfortable everyday firing | Wi-Fi connectivity and intuitive control |
| Bentrup TC95 | Demanding ceramic applications | Advanced programming and graphic display |
Optional accessories
- Double rotating wheels with brake
- Firing shelves and interlayer plates
- Ceramic spacing columns
- Additional kiln furniture and firing aids
Compare available kiln controllers or contact us for help choosing the right kiln configuration.
Explore other models from the LAC M series of top-loading ceramic kilns.
Additional parameters
| Category: | Variants |
|---|---|
| Warranty: | 3 years |
| External dimensions (w × h × d) mm: | 598×764×620 |
| Input in kW: | 3,5 |
| Internal dimensions (w × h × d) mm: | 412×345 |
| Tmax °C: | 1320 |
| Type: | Ceramic Kiln M |
| Voltage V: | 230 |
| Tmax °C: | 1320 |
| Recommended operating temperature range in °C: | 700-1250 |
| Volume in l: | 46 |
| External dimensions (D×d×h) mm: | 598×764×620 |
| Internal dimensions (D×h) mm: | 412×345 |
| Input in kW: | 3,5 |
| Weight in kg: | 68 |
| Power socket: | Schuko |
| Protection A: | 16/1 |
| Voltage V: | 230 |
