Flamen Omega Left Corner

FLAMEN OMEGA LEFT CORNER

Replacement shapes for Flamen Omega Left Corner

Replacement refractory castable shapes for the left corner version of Flamen Omega fireplace inserts. Use the numbered diagram below to quickly identify the replacement part you need.

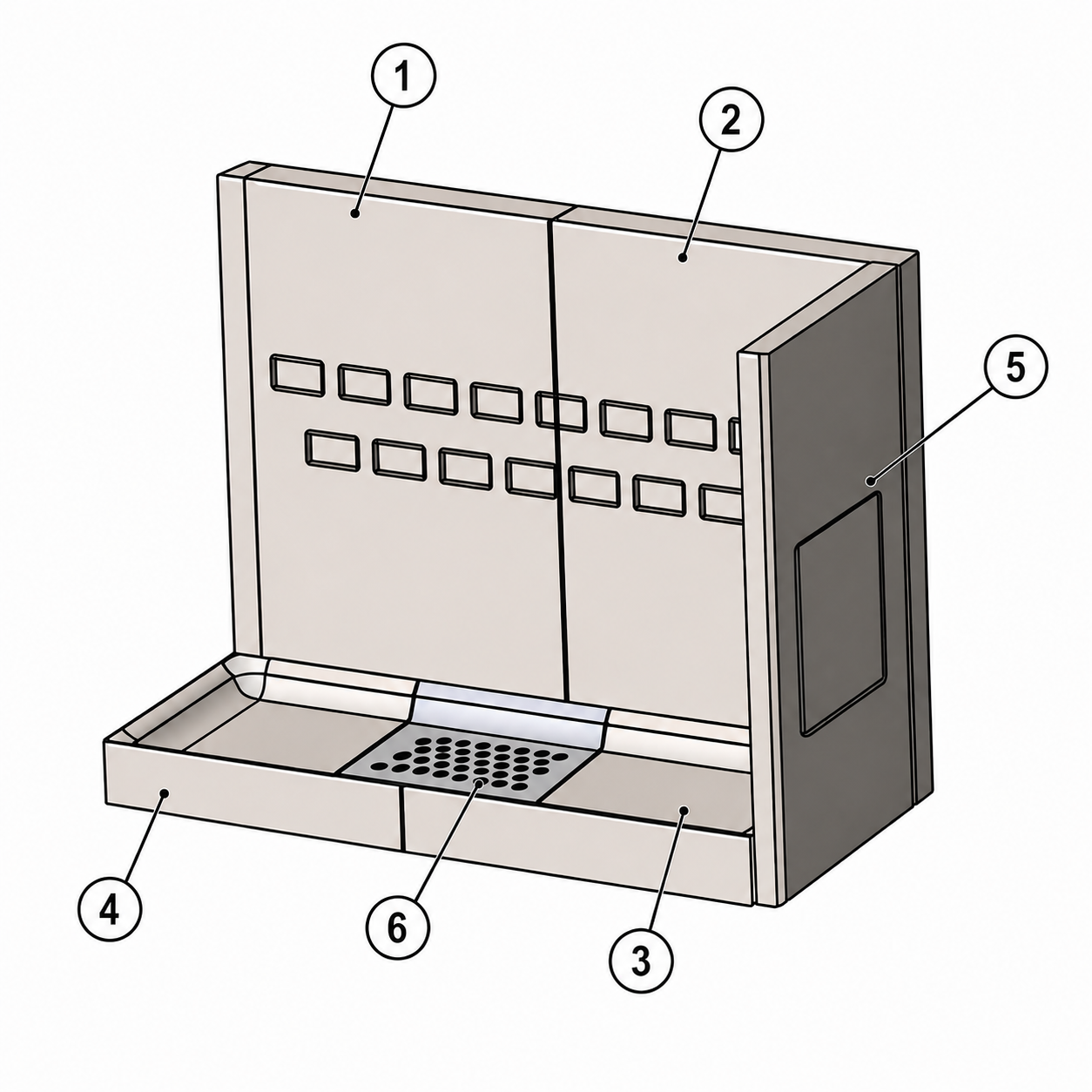

$Flamen Omega Left Corner refractory castable shapes$

Parts overview

1 Rear plate left 2 Rear plate right 3 Bottom plate right 4 Bottom plate left 5 Side plate 6 Grate

Page 1 of 1 - 6 items total

Flamen Omega Corner - Rear plate left (1)

Upon request

€126 incl. VAT

€104

Max. T: 1200 °C | Compressive strength: 82 MPa | Fireplace insert lining

01038544

Flamen Omega Corner - Rear plate right (2)

Upon request

€51 incl. VAT

€42

Max. T: 1200 °C | Compressive strength: 82 MPa | Fireplace insert lining

01038545

Flamen Omega Corner - Bottom plate right (3)

Upon request

€51 incl. VAT

€42

Max. T: 1200 °C | Compressive strength: 82 MPa | Fireplace insert lining

01038542

Flamen Omega Frontal / Corner - Bottom plate (4)

Upon request

€64 incl. VAT

€53

Max. T: 1200 °C | Compressive strength: 82 MPa | Fireplace insert lining

01035360

Flamen Omega & Sigma Frontal / Corner - Side plate (5)

Upon request

€80 incl. VAT

€66

Max. T: 1200 °C | Compressive strength: 82 MPa | Fireplace insert lining

01019818

Flamen Omega Frontal / Corner - Grate (6)

Upon request

€40 incl. VAT

€33

Max. T: 1400 °C | Compressive strength: 115 MPa | Fireplace insert lining

01035362

6 items total
