Heat Treatment System SKV up to 1200 °C
Max temp: 1200 °C | Vessel size: 300 × 700 × 1000 mm | Voltage: 400 V

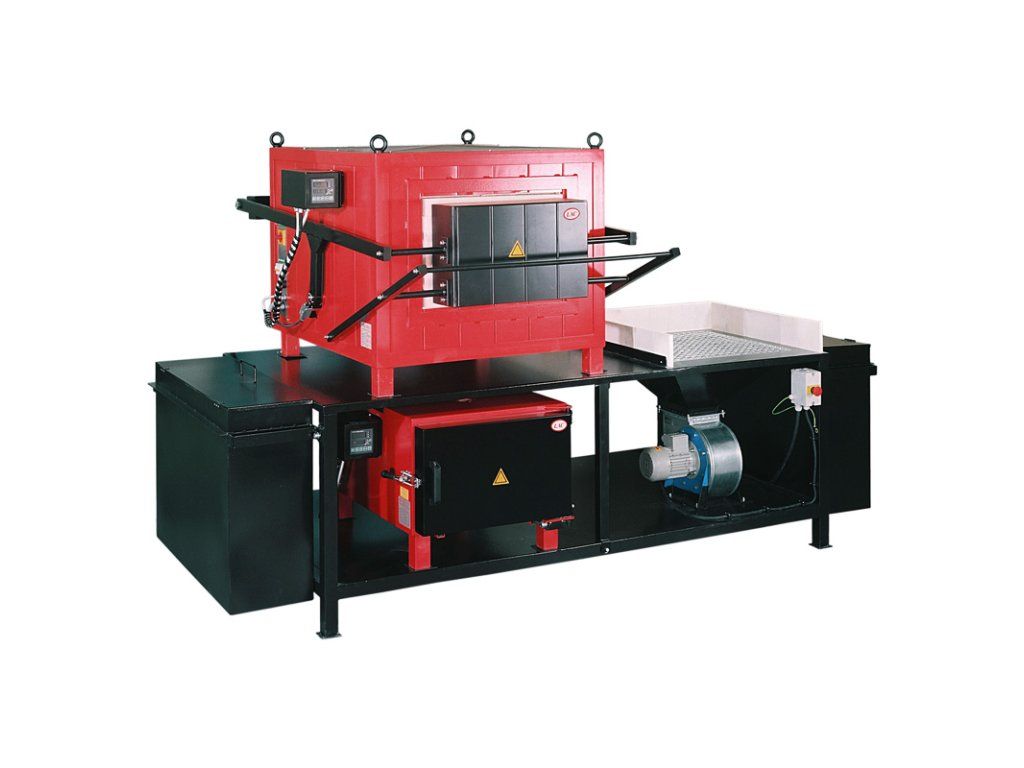

Heat treatment system for hardening processes up to 1200 °C
Need a compact workplace where preheating, hardening, quenching, tempering and ageing can be performed in one organised setup?
The SKV heat treatment system up to 1200 °C is designed for workshops and heat treatment departments that need the key hardening equipment within easy reach — furnace, tempering furnace, quenching vessels, manipulation basket and air-hardening fan.
- You need a complete workplace for hardening up to 1200 °C
- You want to combine heating, quenching and tempering in one practical layout
- You use oil, water or air hardening
- You process smaller tools, metal parts or workshop batches
- You need better organisation and safer handling during heat treatment
- You want a configurable system built around LAC furnace technology
Key features:
- Heat treatment system up to 1200 °C
- Designed for preheating, hardening, tempering and artificial ageing
- Suitable for oil, water and air hardening
- Can be combined with selected PKE or PK hardening furnaces
- Can include a PP tempering furnace
- Hardening vessels for water and oil
- Hardening manipulation basket
- Fan for air hardening
Typical applications
The SKV heat treatment system is suitable for smaller hardening workplaces where heating, quenching, tempering and handling need to be arranged in one practical process flow.
- Hardening
- Preheating
- High-temperature tempering
- Low-temperature tempering
- Soft annealing
- Annealing for stress relieving
- Recrystallisation annealing
- Artificial ageing
- Curing
- Mould drying
- Solution annealing of non-ferrous metals
- Cementing in powder
Typical industries
- Toolmaking
- Heat treatment shops
- Metalworking workshops
- Mechanical engineering
- Maintenance and repair operations
- Small-batch industrial production
Available configurations
- Hardening furnace: PKE 12/12 – PKE 90/12, PK 16/12(R), PK 17/12(R) or PK 55/12
- Tempering furnace: PP 20/45, PP 20/65 or other sizes on a separate stand
- Water hardening vessel: SKV 190–200 L
- Oil hardening vessel: SKV 190–200 L
- Hardening manipulation basket
- Fan for air hardening
Main benefits
- Complete heat treatment workplace
- Heating, quenching and tempering in one organised setup
- Suitable for oil, water and air hardening
- Reduced handling between process steps
- Configurable according to process requirements
The system can be configured with selected PK chamber furnaces, PKE chamber furnaces and PP tempering furnaces according to the required heat treatment process.
Optional accessories available at additional cost
- Spare hardening vessel for water (SKV: 190–200 L) (heated/unheated)
- Spare hardening vessel for oil (SKV: 190–200 L) (heated/unheated)
- Spare hardening manipulation basket
- Chamotte shaped blocks around the hardening grate
- Thermostat-controlled heating of the hardening medium
Note: When combining accessories (at additional cost), consult with our technical office.
Technical parameters
The table below shows the standard technical parameters for the SKV salt bath furnace up to 1200 °C.
| Parameter | SKV |
|---|---|
| External dimensions (w × h × d, mm) | 2900×950×1200 |
| Vessel dimensions (w × h × d, mm) | 300×700×1000 |
| Weight (kg) | 450 |
| Fan (pcs) | 1 |
| Heating input (kW) | 3 |
| Voltage (V) | 400 |
| Grate dimensions (w × d, mm) | 600×600 |
Contact us and our specialists will help you select the right furnace configuration, salt bath dimensions and optional equipment for your application.
Additional parameters
| Category: | Industrial furnaces |
|---|---|
| Warranty: | 2 years |
You need a furnace solution that delivers consistent results, long service life and reliable performance in your process. LAC furnaces are designed for laboratory and industrial applications, from material testing and heat treatment to demanding production processes. With a focus on temperature uniformity, durability and process stability, they help you achieve repeatable results and reduce operational risks.
| Manufacturing company : | LAC, s.r.o. |
|---|---|
| Address : | Topolová 933 667 01 Židlochovice Czech Republic |
