    High-Temperature Furnace with SiC Heating Rods LHS 15/15 up to 1500 °C

    Brand: LAC, s.r.o.

    Max temp: 1500°C | Volume: 14.4 l | Voltage: 400 V

    The item has been sold out…
    Availability Upon request
    Delivery options
    Code: 01006023
    €13 900 €16 819 incl. VAT

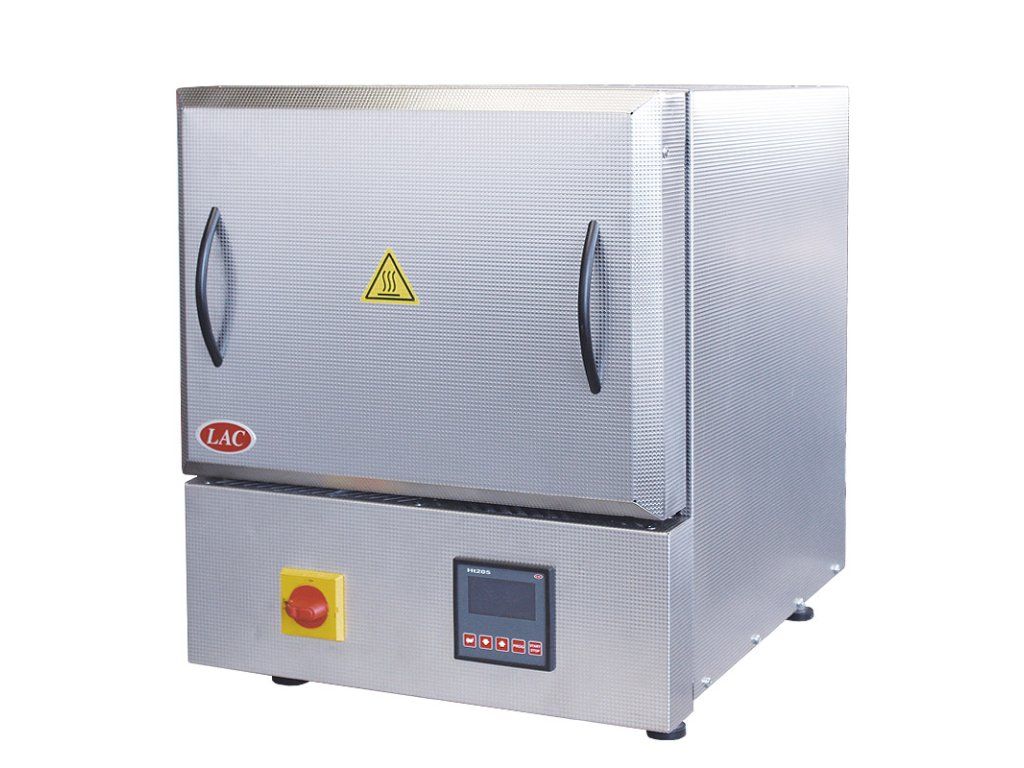

    High-Temperature Furnace with SiC Heating Rods LHS 15/15 up to 1500 °C
    Brand: LAC, s.r.o.

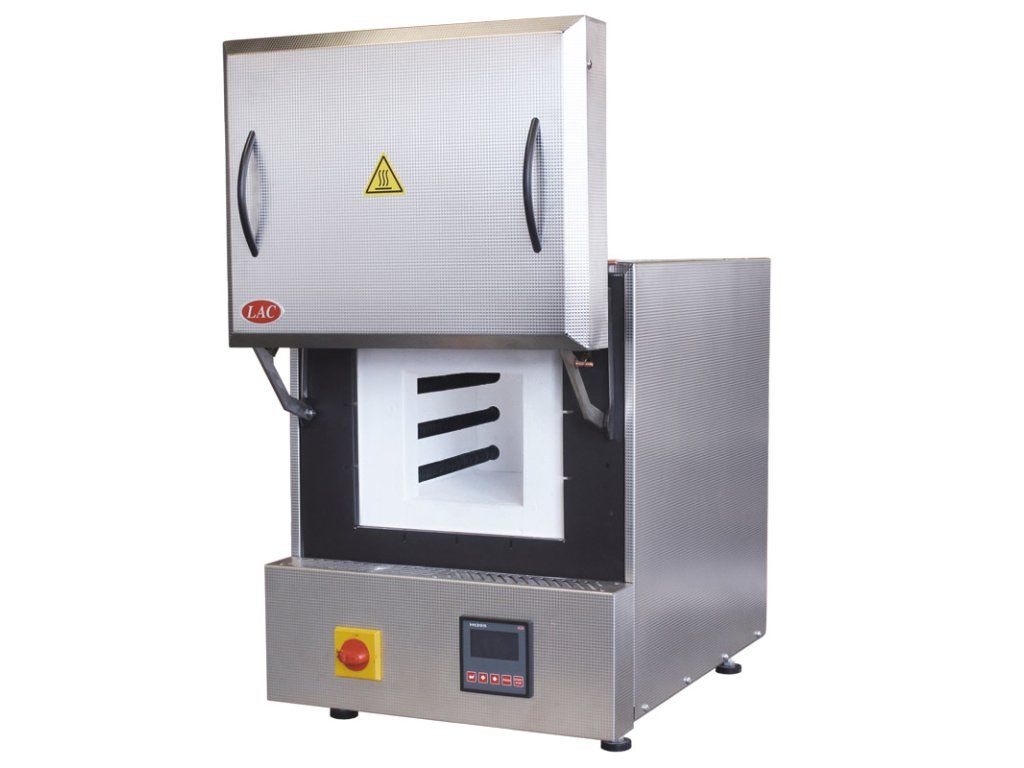

    High-Temperature Furnace with SiC Heating Rods LHS 15/15 opened

    Laboratory furnace with silit rod heating for high-temperature processes up to 1500 °C

    Looking for a furnace for demanding laboratory processes at very high temperatures?

    The LHS 15/15 model is a desktop laboratory furnace with silit rods designed for controlled heat treatment up to 1500 °C.

    When is this model the right choice?
    • You need high-temperature operation up to 1500 °C
    • You require rapid achievement of the required temperature
    • You want compact dimensions without a bulky transformer
    • You are looking for a furnace suitable for sintering, testing of materials or similar laboratory applications
    The LHS 15/15 model is designed for high-temperature laboratory applications. It is especially suitable for processes where standard laboratory furnaces with resistance wire heating are no longer sufficient. The furnace uses silit rods, which allow high power density, fast heat-up and long service life. Compared with the VP type furnace, the LHS has more compact dimensions and a lower purchase price.

    Key features:

    • Maximum temperature 1500 °C
    • Maximum temperature for long-term use 1450 °C
    • Inner volume 14.4 l
    • Silit rods on the furnace sides
    • Thermocouple Type “B”
    • Forced jacket cooling with ventilator fan
    • Contactless switching relay for noiseless operation

    Typical applications

    This laboratory furnace is suitable for high-temperature laboratory processes, especially where standard resistance wire furnaces can no longer operate. It is suitable for applications requiring rapid temperature increase and reliable high-temperature operation.

    • Sintering – solid state, liquid phase and powder sintering
    • Testing of materials
    • Enamel firing (partially suitable)
    • Melting of metal materials (partially suitable)
    • Fusing of glass (partially suitable)

    Available models in this series

    Ideal choice if

    • You need a laboratory furnace up to 1500 °C
    • You require rapid heat-up to the required temperature
    • You work with larger sample volumes

    Main benefits

    • Rapid achievement of the required temperature
    • Heating elements with long service life
    • Temperature shock-resistant silit rod heating elements
    • Convenient furnace servicing
    Suitable for laboratories focused on high-temperature testing and long-term thermal processes.
    For lower-temperature laboratory applications, consider the LH, L or LE series according to the required temperature range.

    Optional features

    • Controller Ht205 (30 programs with 15 steps each)
    • Protective atmosphere inlet (manually or automatically controlled gas supply)
    • Ejector with exhaust fan and draft diverter for the extraction of fumes
    • Protective bottom plate
    • Calibration of controller input measurement
    • Interface RS232, EIA485 or Ethernet including cable and software
    • HtMonit set (software + interface)
    Not sure if this model fits your process?
    Contact us or use our sample testing services.

    For technical specifications, construction and design, please refer to the product page.

    Additional parameters

    Category: LHS
    Warranty: 2 years
    External dimensions (w × h × d) mm: 550×670×710
    Input in kW: 10,5
    Internal dimensions (w × h × d) mm: 220×220×310
    Tmax °C: 1500
    Type: High-Temperature Furnace with SiC Heating Rods LHS
    Voltage V: 400
    Tmax °C: 1500
    Recommended operating temperature range in °C: 700 - 1500
    Volume in l: 14,4
    External dimensions (w × h × d) mm: 550×670×710
    Internal dimensions (w × h × d) mm: 220×220×310
    Input in kW: 10,5
    Weight in kg: 100
    Voltage V: 400
    Max. load capacity of bottom in kg: 8
