My Fireplace Lining Is Cracked. What Should I Replace It With?
Looking for a Chamotte Firebrick? The Original Replacement May Be Refractory Concrete
Why the material we expect may not be the material originally designed for the fireplace insert.
When a fireplace lining cracks or becomes worn, most of us naturally start looking for a chamotte firebrick, chamotte panel or replacement fireplace lining.
But instead of chamotte, we may find a replacement component made from refractory concrete.
This does not necessarily mean that we have found the wrong product. In many fireplace inserts, refractory concrete is the original material selected for the lining component.

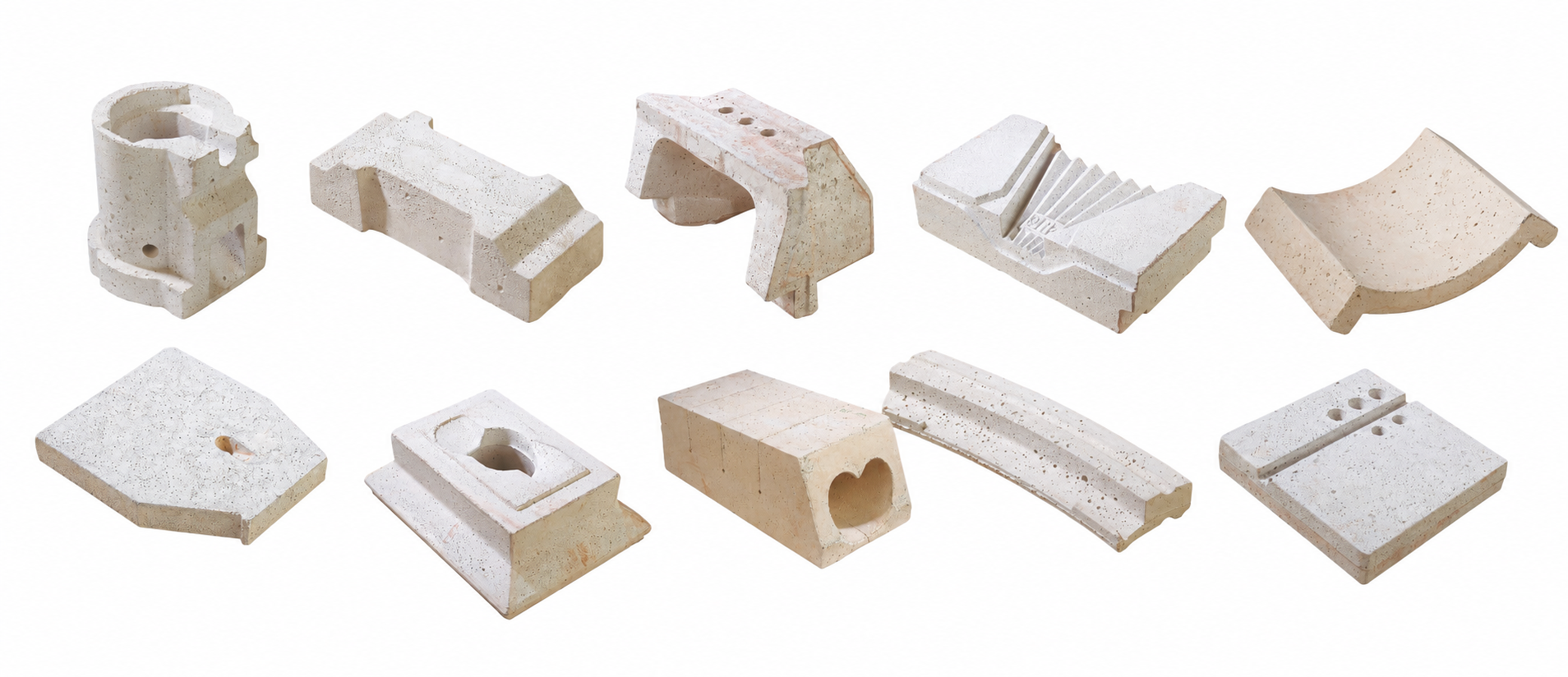

Original refractory concrete shapes manufactured by LAC.
LAC is the direct manufacturer of these refractory concrete shapes.
LAC manufactures original replacement fireplace lining components for defined fireplace inserts as well as custom refractory concrete shapes according to supplied dimensions, drawings or samples.
Why do we usually search for chamotte?
Chamotte is one of the best-known materials used in fireplaces, stoves and heating appliances. For this reason, many of us use the word chamotte as a general name for almost any firebox lining panel or replacement firebrick.
However, not every original fireplace lining component is made from chamotte. The material is selected according to the required temperature resistance, mechanical strength, dimensional accuracy and shape of the component.
Why are we finding refractory concrete instead?
Refractory concrete is suitable for components that must withstand high temperatures while also meeting demanding requirements for strength, accuracy and shape.
It allows the production of lining components with profiles, recesses, angled surfaces and other details that would be difficult to reproduce accurately using a simple standard firebrick.
Finding refractory concrete instead of chamotte does not mean that the product is merely a substitute. It may be the original material chosen for the fireplace insert.
Why does LAC manufacture fireplace lining components from refractory concrete?
LAC manufactures original fireplace lining components from KZB 2 refractory concrete. This material makes it possible to produce accurate, mechanically strong and complex shapes designed for specific fireplace inserts.
- Maximum operating temperature up to 1200 °C
- Compressive strength up to 82 MPa
- Dimensional accuracy up to ±0.5 mm
- Reliable production of complex original shapes
- Consistent quality in serial production
Because LAC manufactures the shapes directly, it has control over the material, production process and dimensional accuracy of the finished component.
Chamotte vs. LAC refractory concrete
Both materials are intended for high-temperature use. The main difference lies in the strength, dimensional accuracy and possibilities of manufacturing the finished component.
| Traditional chamotte | LAC refractory concrete |
|---|---|
| Usually simpler shapes | Complex original shapes |
| Lower dimensional flexibility | Dimensional accuracy up to ±0.5 mm |
| Lower mechanical strength | Compressive strength up to 82 MPa |
| More limited design possibilities | High manufacturing flexibility |
How do we find the right replacement?
If the original lining component for a fireplace insert is made from refractory concrete, then a refractory concrete shape is the correct replacement—even when we originally searched for a chamotte firebrick.
The replacement should match the fireplace model, position inside the firebox, shape and dimensions of the original component.
What if the original component is no longer available?
Older or non-standard fireplace inserts may require a lining component that is no longer available as a standard spare part.
As a direct manufacturer, LAC can also produce custom refractory concrete shapes according to supplied dimensions, technical drawings or customer samples.
Looking for a replacement fireplace lining component?
Browse original refractory concrete shapes manufactured by LAC for firebox linings up to 1200 °C.
👉 View refractory concrete shapes for firebox linings
Cannot find the required component? Contact LAC to discuss a custom refractory concrete shape.
