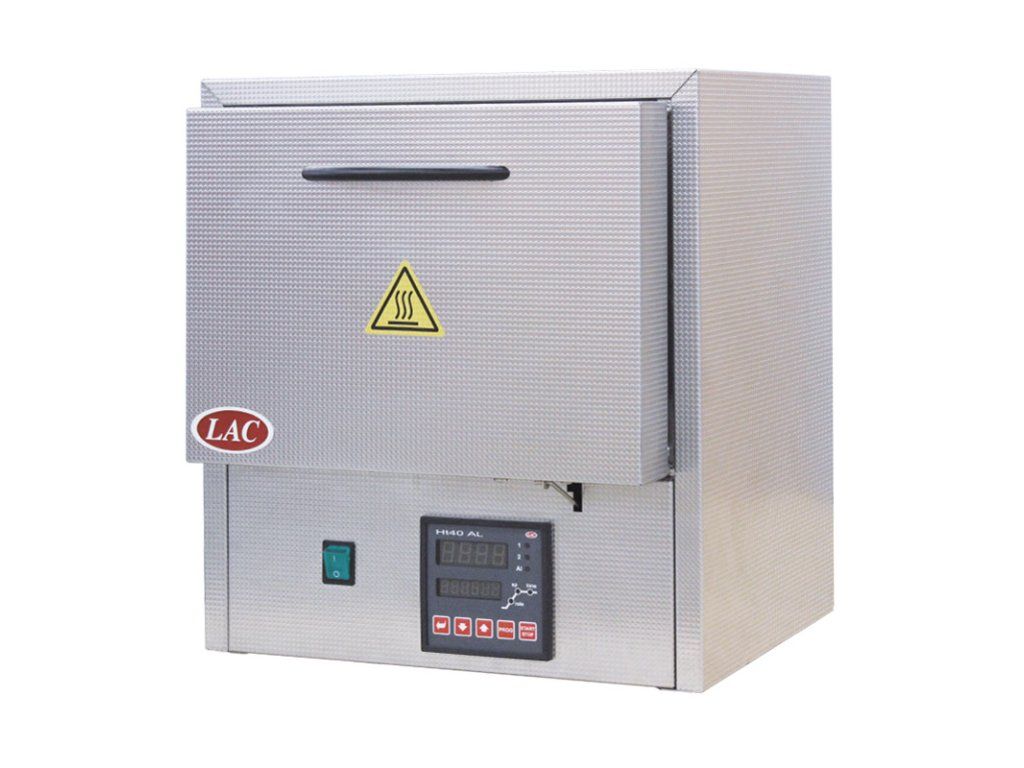

Laboratory Muffle Furnace L 05/12 up to 1200 °C
Max temp: 1200 °C | Volume: 5 l | Voltage: 230 V
Universal laboratory furnace for precise heat treatment and regular laboratory use
Looking for a reliable laboratory furnace for material testing, development, quality control or repeatable thermal processes?
The L 05/12 model provides a versatile solution for controlled heat treatment processes up to 1200 °C.
- You work with small sample loads (approx. 5 l)
- You require stable and repeatable laboratory conditions
- You need a furnace suitable for regular laboratory operation
Key features:
- Maximum temperature 1200 °C for a wide range of laboratory processes
- Chamber volume 5 l suitable for small samples and test batches
- Heating elements embedded in ceramic plates
- Vent chimney in the rear part of the furnace
- Easy operation and easy integration into laboratory workflows
Typical applications
This laboratory furnace is designed for controlled heat treatment of materials under laboratory conditions. It is suitable especially where precision, repeatability and reliable operation during regular use are required.
- Heat treatment of metallic materials
- Annealing and preheating of small parts and samples
- Sintering and calcination of materials
- Enamel firing
- Material testing and development
- Quality control and verification of technological procedures
- Laboratory processes requiring stable temperature conditions
Available models in this series
- L 03/12 (product detail) – very small samples and precise testing
- L 05/12 (this model) – small samples and laboratory testing
- L 09/12 (product detail) – versatile laboratory use
- L 15/12 (product detail) – larger batches and frequent operation
Ideal choice if
- You need a universal laboratory furnace up to 1200 °C
- You perform regular testing or development processes
- You work with smaller material volumes
Main benefits
- Universal application
- Stable thermal regime for repeatable results
- Easy operation and installation
- Quiet operation thanks to solid-state relays (SSR)
If you are looking for a more economical solution for less demanding use, consider the LE series.
Optional features
- Programmable controller
- Ejector with exhaust fan
- Protective bottom plate
- HtMonit set
- Protective gas inlet
-
Calibration of the temperature control loop
Contact us or use our sample testing services.
For technical specifications, construction and design, please refer to the product page.
| Category: | Laboratory furnaces |
|---|---|
| Warranty: | 3 years |
| Tmax °C: | 1200 |
| Recommended operating temperature range in °C: | 700 - 1150 |
| Volume in l: | 5 |
| External dimensions (w × h × d) mm: | 430×470×430 |
| Internal dimensions (w × h × d) mm: | 230×130×170 |
| Input in kW: | 2,4 |
| Weight in kg: | 26 |
| Voltage V: | 230 |
| Max. load capacity of bottom in kg: | 6 |
You need a reliable laboratory furnace for material testing, enamel firing and general heat treatment up to 1200 °C.
The L series is designed for routine laboratory use where stable temperature, repeatable results and reliable operation are required. The construction protects heating elements from contamination and mechanical damage, ensuring long-term performance.
For processes with intensive gas release or controlled atmosphere requirements, consider a more specialised furnace with active exhaust or atmosphere control.
Explore L models designed for everyday laboratory use ↓
