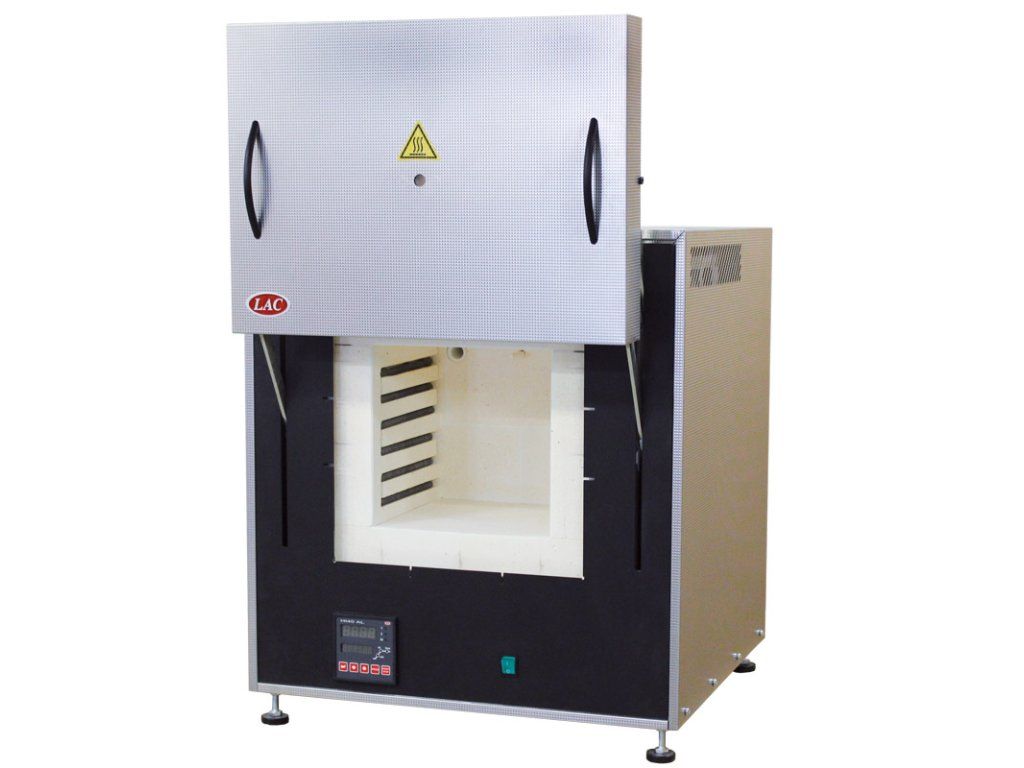

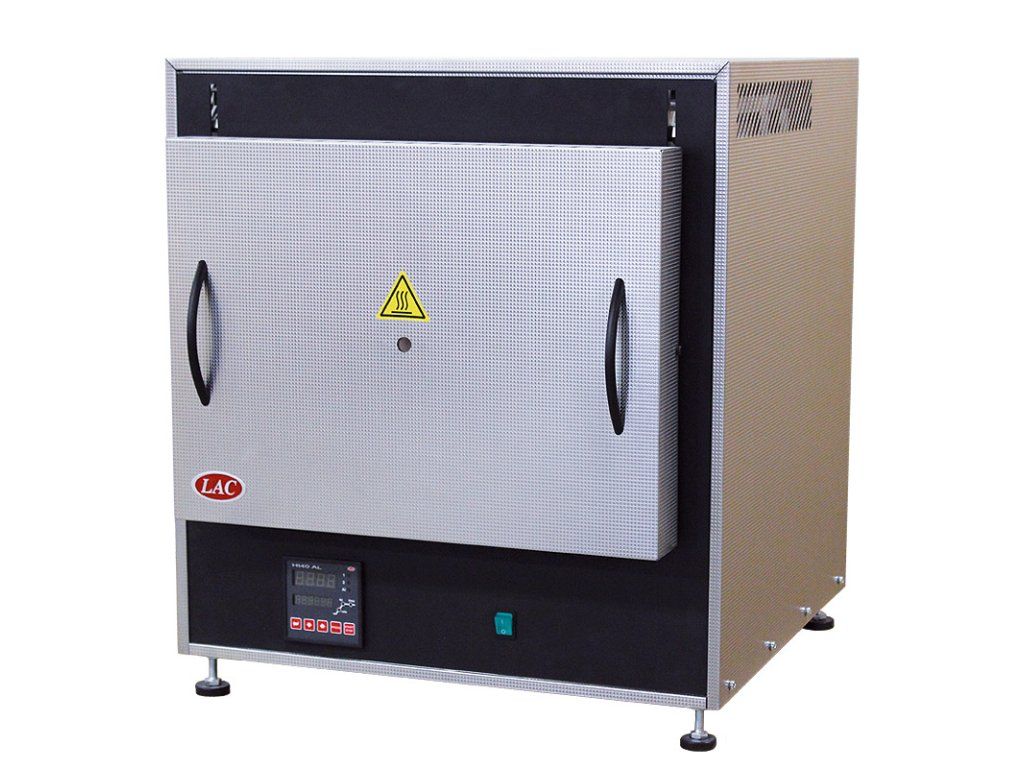

Muffle Furnace with Brick Insulation LH 30/13 up to 1340 °C
Max temp: 1340°C | Volume: 30 l | Voltage: 230 V
Laboratory chamber furnace for high-temperature processes up to 1340 °C
Looking for a furnace for demanding laboratory processes at higher temperatures?
The LH 30/13 model is a laboratory chamber furnace designed for controlled heat treatment up to 1340 °C.
- You need higher temperatures up to 1340 °C
- You perform demanding laboratory or research processes
- You require stable and repeatable temperature conditions
- You are looking for a reliable chamber furnace for regular use
Key features:
- Maximum temperature 1340 °C
- Chamber volume approx. 30 l
- Heating elements for high-temperature operation
- Thermocouple Type “S”
- Fibre insulation for efficient operation
- Contactless switching relay for noiseless operation
Typical applications
This laboratory furnace is suitable for high-temperature laboratory processes. It is especially used where stable and repeatable conditions are required for testing and development.
- Heat treatment of materials
- Laboratory testing and development
- Sintering and calcination
- Material research
- Processes requiring higher temperatures
Available models in this series
- LH 06/13 (product detail) – approx. 6 l chamber volume for smaller samples
- LH 09/13 (product detail) – approx. 9 l chamber volume for medium sample sizes
- LH 15/13 (product detail) – approx. 15 l chamber volume for larger samples
- LH 30/13 (this model) – approx. 30 l chamber volume for large sample volumes
Ideal choice if
- You need a laboratory furnace up to 1340 °C
- You perform high-temperature testing or development
- You require stable thermal conditions
- You work with larger sample volumes
Main benefits
- High-temperature capability
- Stable and repeatable results
- Reliable operation
- Noiseless operation
- Large chamber volume for demanding use
For standard laboratory applications up to 1200 °C, consider the L series or a more economical LE series.
Optional features
- Programmable controller
- Ejector with exhaust fan
- Protective atmosphere inlet
- Calibration of the controller measuring input
- Communication interface
Contact us or use our sample testing services.
For technical specifications, construction and design, please refer to the product page.
| Category: | Laboratory furnaces |
|---|---|
| Warranty: | 3 years |
| Tmax °C: | 1340 |
| Recommended operating temperature range in °C: | 700 - 1300 |
| Volume in l: | 30 |
| External dimensions (w × h × d) mm: | 680×770×800 |
| Internal dimensions (w × h × d) mm: | 310×310×310 |
| Input in kW: | 3,2 |
| Weight in kg: | 105 |
| Voltage V: | 230 |
| Max. load capacity of bottom in kg: | 25 |
You need a laboratory furnace for higher temperatures and fast heat transfer to the charge up to 1340 °C.
The LH series uses lightweight refractory brick insulation with heating elements placed in grooves, enabling rapid heat-up and efficient heat transfer for demanding laboratory processes.
Not suitable for processes with aggressive gases or vapours that may affect exposed heating elements or lining. For such conditions, consider furnaces with protected heating systems such as the LMH series.
Explore LH models designed for high-temperature laboratory processes ↓
